Analysis and Synthesis of Mechanisms Given the four bar linkage bellow, obtain the position (x, y), velocity (vx, vy) an

[answerhappygod]

Analysis And Synthesis Of Mechanisms Given The Four Bar Linkage Bellow Obtain The Position X Y Velocity Vx Vy An 1 (546.33 KiB) Viewed 31 times

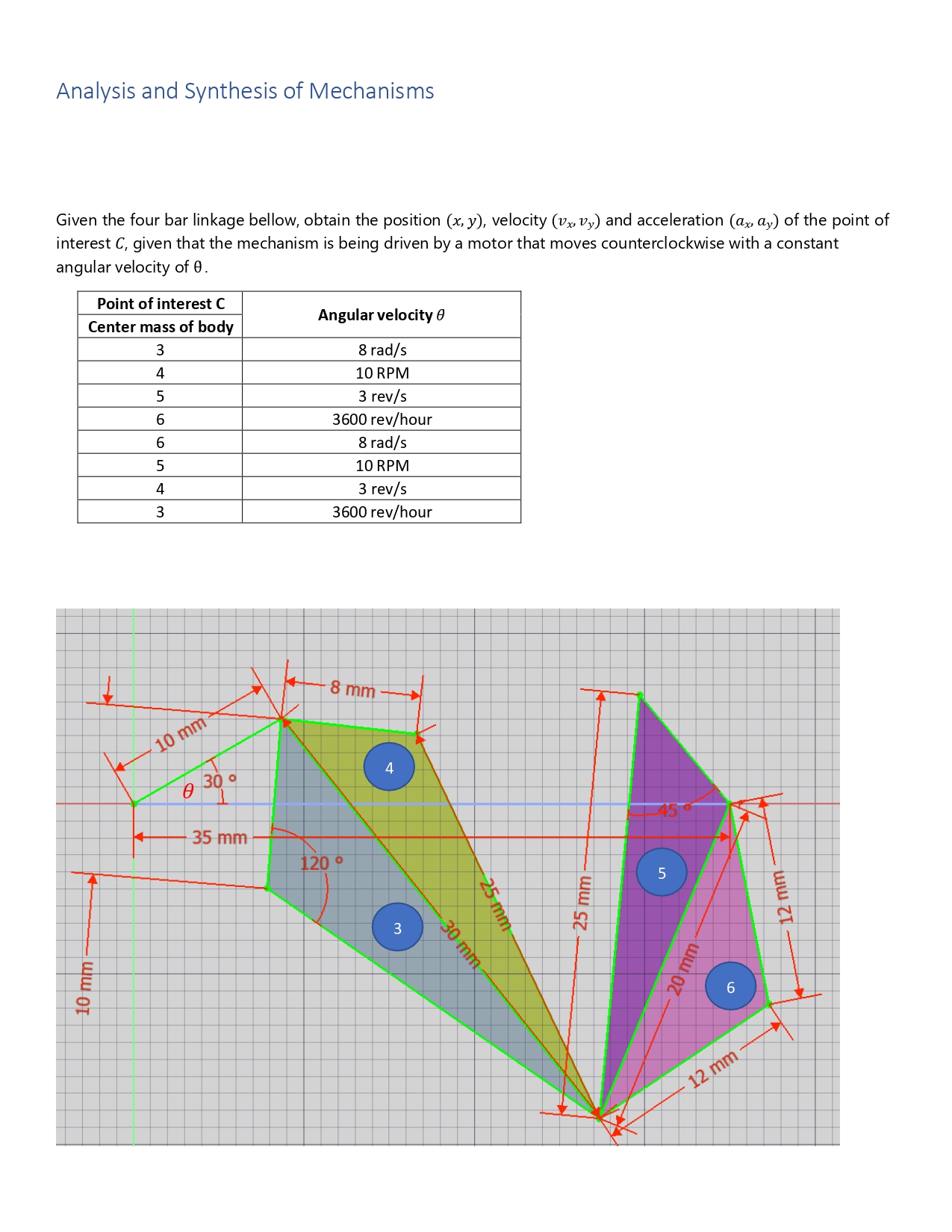

Analysis and Synthesis of Mechanisms Given the four bar linkage bellow, obtain the position (x, y), velocity (vx, vy) and acceleration (ay, ay) of the point of interest C, given that the mechanism is being driven by a motor that moves counterclockwise with a constant angular velocity of 0. Point of interest C Center mass of body 3 4 5 6 6 5 4 3 10 mm ← 10 mm 0 30 ° 35 mm Angular velocity 0 8 rad/s 10 RPM 3 rev/s 3600 rev/hour 8 rad/s 10 RPM 3 rev/s 3600 rev/hour 8 mm 120 ° 4 3 30 mm 25 mm 25 mm 5 20 mm 6 12 mm ww.ZI
