13 1. (40 points) Determine the state of stress at point A of section a-a. Indicate your final answers on the given volu

[answerhappygod]

13 1 40 Points Determine The State Of Stress At Point A Of Section A A Indicate Your Final Answers On The Given Volu 1 (47 KiB) Viewed 19 times

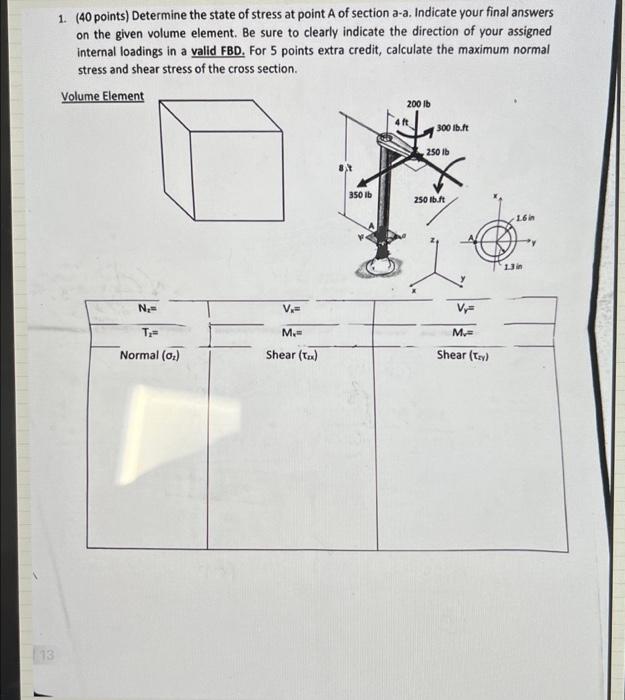

13 1. (40 points) Determine the state of stress at point A of section a-a. Indicate your final answers on the given volume element. Be sure to clearly indicate the direction of your assigned internal loadings in a valid FBD. For 5 points extra credit, calculate the maximum normal stress and shear stress of the cross section. Volume Element N₂= T₁= Normal (0₂) V₁= M.= Shear (x) 350 lb 200 lb 300 lb.ft 250 lb 250 lb.ft Vy= M= Shear (Try) 1.3 in
