Q3. The compound beam is pin-supported at A, pin-connected at C, and supported by rollers at B and D. The lengths are /₁

[answerhappygod]

Q3 The Compound Beam Is Pin Supported At A Pin Connected At C And Supported By Rollers At B And D The Lengths Are 1 (41.43 KiB) Viewed 29 times

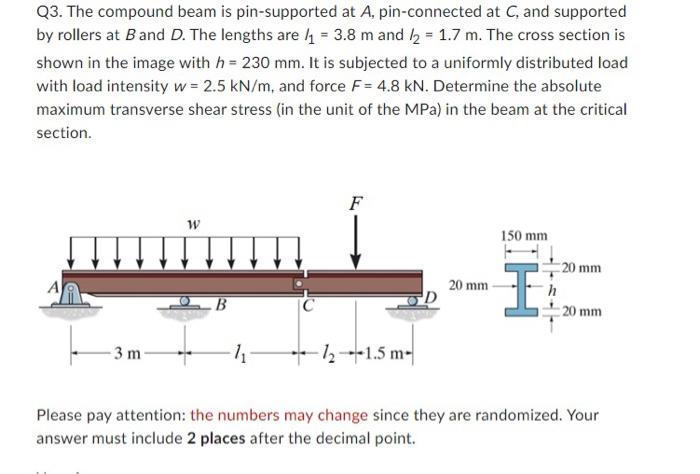

Q3. The compound beam is pin-supported at A, pin-connected at C, and supported by rollers at B and D. The lengths are /₁ = 3.8 m and /2 = 1.7 m. The cross section is shown in the image with h = 230 mm. It is subjected to a uniformly distributed load with load intensity w = 2.5 kN/m, and force F= 4.8 kN. Determine the absolute maximum transverse shear stress (in the unit of the MPa) in the beam at the critical section. 3 m W B 11 C F -1₂---1.5 m- 20 mm 150 mm I 20 mm 20 mm Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point.
