3- The axle of an automobile is acted upon by the forces and couple shown. Knowing that the diameter of the solid axle i

Post by answerhappygod »

3 The Axle Of An Automobile Is Acted Upon By The Forces And Couple Shown Knowing That The Diameter Of The Solid Axle I 1
3 The Axle Of An Automobile Is Acted Upon By The Forces And Couple Shown Knowing That The Diameter Of The Solid Axle I 1 (32.91 KiB) Viewed 17 times

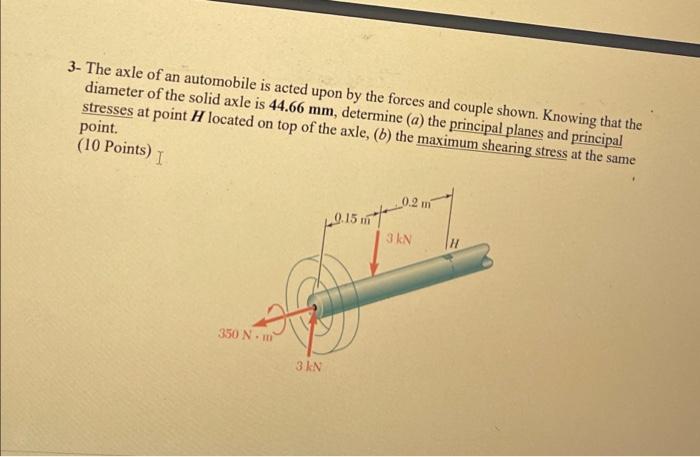

3- The axle of an automobile is acted upon by the forces and couple shown. Knowing that the diameter of the solid axle is 44.66 mm, determine (a) the principal planes and principal stresses at point H located on top of the axle, (b) the maximum shearing stress at the same point. (10 Points) I 350 Nm 3 kN 9.15 m 0.2 m 3 kN
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
