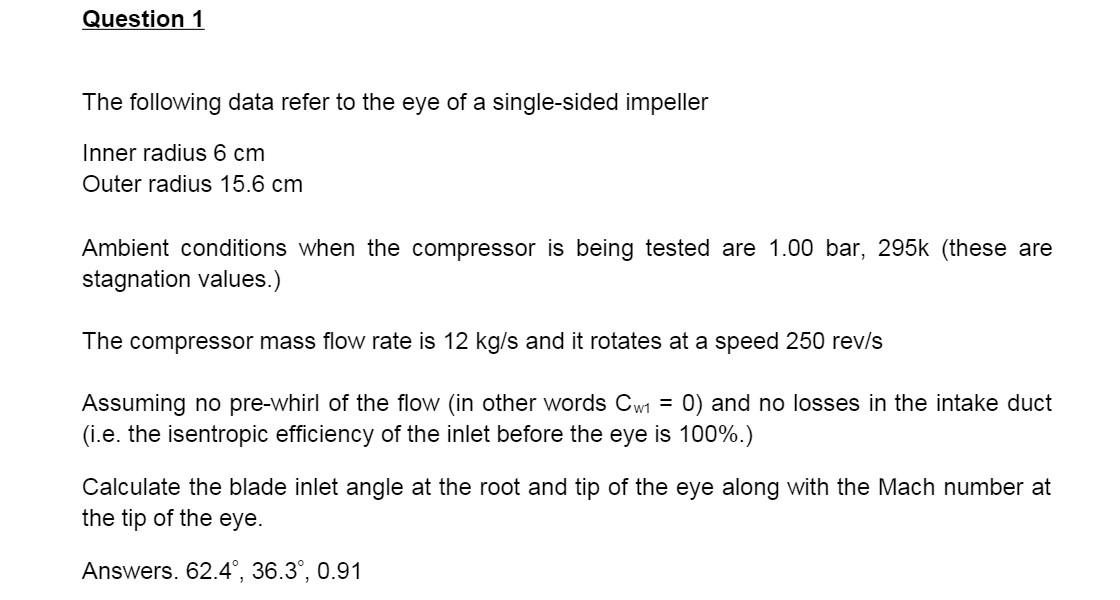

Question 1 The Following Data Refer To The Eye Of A Single Sided Impeller Inner Radius 6 Cm Outer Radius 15 6 Cm Ambient 1 (63.78 KiB) Viewed 18 times

Question 1 The following data refer to the eye of a single-sided impeller Inner radius 6 cm Outer radius 15.6 cm Ambient conditions when the compressor is being tested are 1.00 bar, 295k (these are stagnation values.) The compressor mass flow rate is 12 kg/s and it rotates at a speed 250 rev/s Assuming no pre-whirl of the flow (in other words Cw₁ = 0) and no losses in the intake duct (i.e. the isentropic efficiency of the inlet before the eye is 100%.) Calculate the blade inlet angle at the root and tip of the eye along with the Mach number at the tip of the eye. Answers. 62.4°, 36.3°, 0.91
