GIVEN BELOW THE ISOMETRIC DRAWING OF A SHAPED BLOCK MADE OF WOOD. DRAW THE FOLLOWING VIEWS USING 1:1 SCALE AND THIRD ANG

Post by answerhappygod »

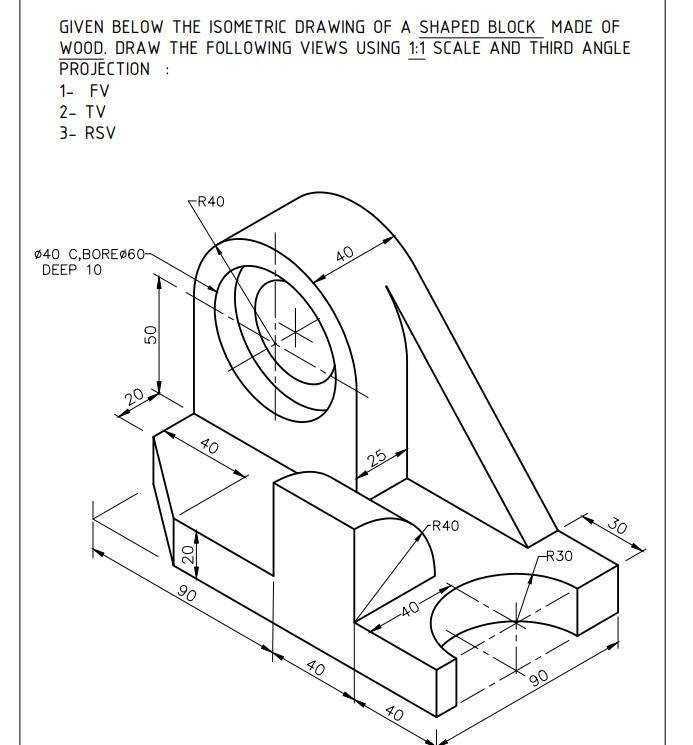

Given Below The Isometric Drawing Of A Shaped Block Made Of Wood Draw The Following Views Using 1 1 Scale And Third Ang 1
Given Below The Isometric Drawing Of A Shaped Block Made Of Wood Draw The Following Views Using 1 1 Scale And Third Ang 1 (58.24 KiB) Viewed 19 times
GIVEN BELOW THE ISOMETRIC DRAWING OF A SHAPED BLOCK MADE OF WOOD. DRAW THE FOLLOWING VIEWS USING 1:1 SCALE AND THIRD ANGLE PROJECTION : 1- FV 2- TV 3- RSV 040 C,BORE 60- DEEP 10 20 50 20. R40 90 40 40 40 25 -40- 40 R40 R30 90 30
