Problem 1 25 Points A Truss Is Loaded As Shown Distances Between Joints And Supports Are In Meters Not In Feet As Ma 1 (41.24 KiB) Viewed 22 times
solve in 25 mins i will thumb up

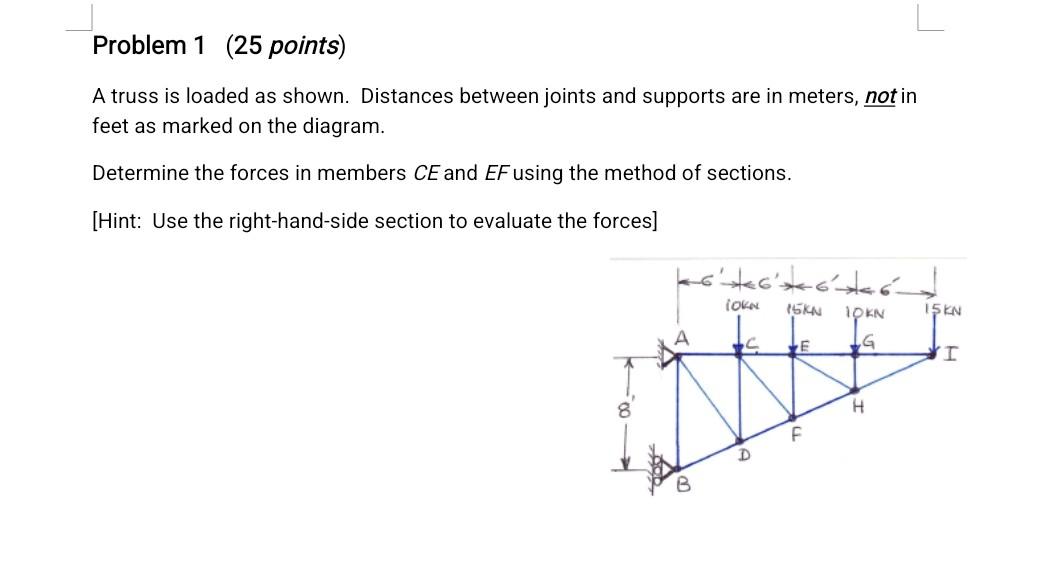

Problem 1 (25 points) A truss is loaded as shown. Distances between joints and supports are in meters, not in feet as marked on the diagram. Determine the forces in members CE and EF using the method of sections. [Hint: Use the right-hand-side section to evaluate the forces] 646²6²6²- 15KN 10KN LG loka C E D H 15KN I
