Question 2 (1 mark) A closed loop feedback system has the following response specifications: a) Mp 3 16% b) Settling tim

Post by answerhappygod »

Question 2 1 Mark A Closed Loop Feedback System Has The Following Response Specifications A Mp 3 16 B Settling Tim 1
Question 2 1 Mark A Closed Loop Feedback System Has The Following Response Specifications A Mp 3 16 B Settling Tim 1 (38.65 KiB) Viewed 45 times

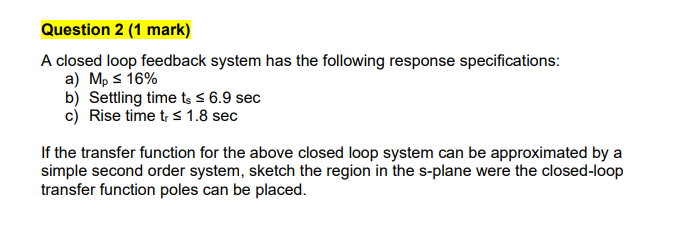

Question 2 (1 mark) A closed loop feedback system has the following response specifications: a) Mp 3 16% b) Settling time ts 5 6.9 sec c) Rise time t, s 1.8 sec If the transfer function for the above closed loop system can be approximated by a simple second order system, sketch the region in the s-plane were the closed-loop transfer function poles can be placed.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
