3.25 The two solid shafts are connected by gears as shown and are made of a steel for which the allowable shearing stres

Post by answerhappygod »

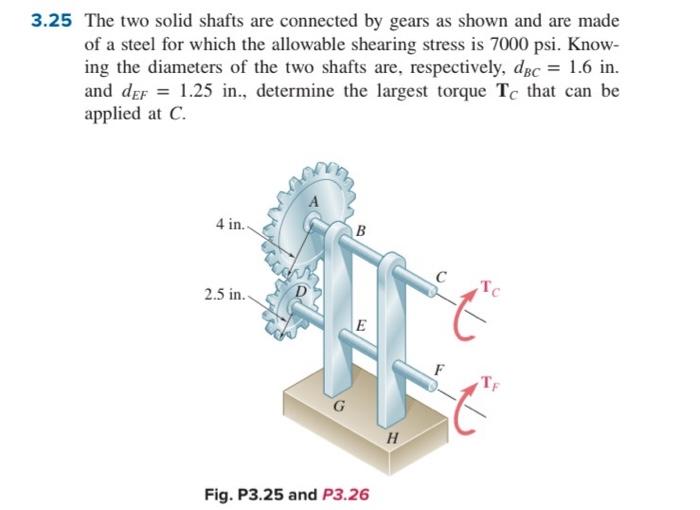

3 25 The Two Solid Shafts Are Connected By Gears As Shown And Are Made Of A Steel For Which The Allowable Shearing Stres 1
3 25 The Two Solid Shafts Are Connected By Gears As Shown And Are Made Of A Steel For Which The Allowable Shearing Stres 1 (30.91 KiB) Viewed 41 times
3.25 The two solid shafts are connected by gears as shown and are made of a steel for which the allowable shearing stress is 7000 psi. Know- ing the diameters of the two shafts are, respectively, dBc = 1.6 in. and dEF = 1.25 in., determine the largest torque Te that can be applied at C. 4 in.. 2.5 in. G B E Fig. P3.25 and P3.26 H To
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
