Water is to be moved from one large reservoir to another a higher elevation as indicated in the Figure. The flow rate, Q

[answerhappygod]

Water Is To Be Moved From One Large Reservoir To Another A Higher Elevation As Indicated In The Figure The Flow Rate Q 1 (83.3 KiB) Viewed 21 times

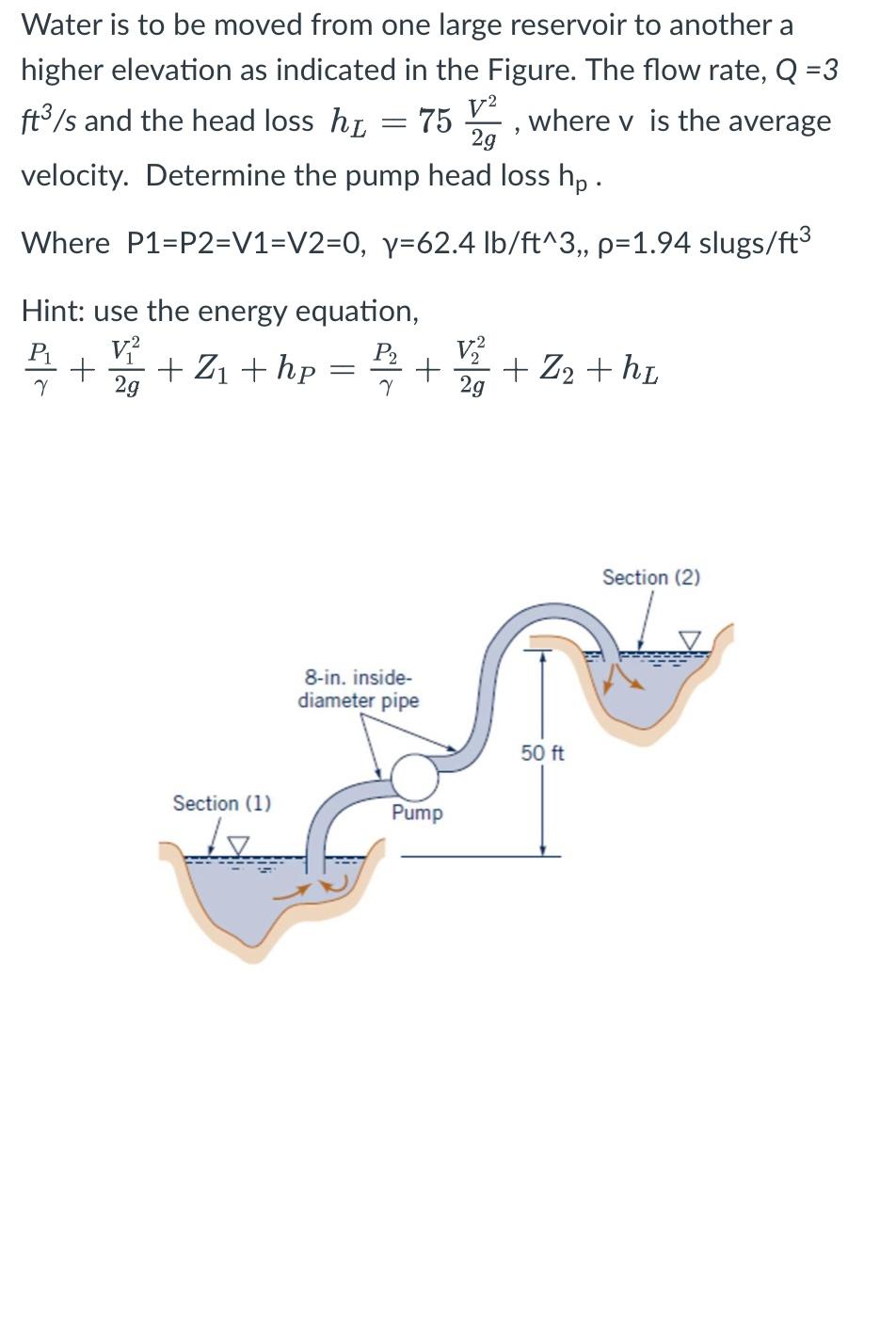

Water is to be moved from one large reservoir to another a higher elevation as indicated in the Figure. The flow rate, Q =3 75 where v is the average ft3/s and the head loss hå V2 2g velocity. Determine the pump head loss hp . Where P1=P2=V1=V2=0, y=62.4 lb/ft^3,, p=1.94 slugs/ft³ = Section (1) Hint: use the energy equation, P₁ V² + + Z₁ + hp = P²/ + - + Z₂ +h₂ P₂ V₂ 2g Y 2g 8-in. inside- diameter pipe 9 Pump 50 ft Section (2)
