The torque T is produced by a motor at free end "D" in the given "shaft-meshed gears" system. End A is fixed. Show detai

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

The torque T is produced by a motor at free end "D" in the given "shaft-meshed gears" system. End A is fixed. Show detai

Post by answerhappygod »

The Torque T Is Produced By A Motor At Free End D In The Given Shaft Meshed Gears System End A Is Fixed Show Detai 1
The Torque T Is Produced By A Motor At Free End D In The Given Shaft Meshed Gears System End A Is Fixed Show Detai 1 (32.27 KiB) Viewed 19 times

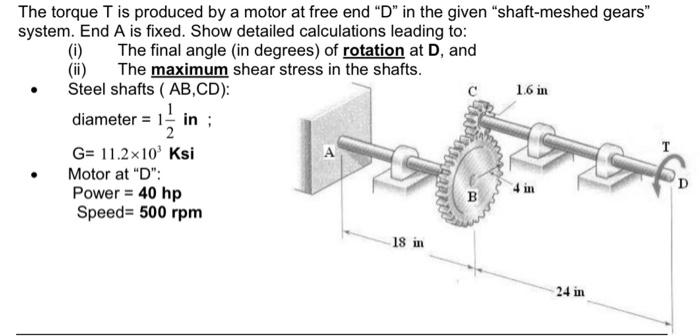

The torque T is produced by a motor at free end "D" in the given "shaft-meshed gears" system. End A is fixed. Show detailed calculations leading to: The final angle (in degrees) of rotation at D, and The maximum shear stress in the shafts. (i) (ii) Steel shafts (AB,CD): 1 diameter 1 in ; 2 G= 11.2×10¹ Ksi Motor at "D": Power = 40 hp Speed= 500 rpm 18 in B 1.6 in 24 in D
