meaning of your result. e) Locate the process on a pressure-volume diagram. Identify the initial state, final state, and

[answerhappygod]

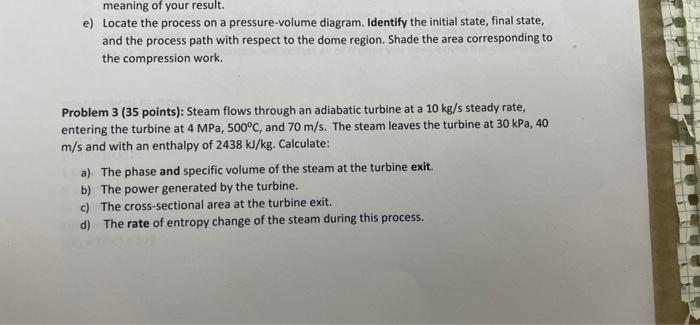

Meaning Of Your Result E Locate The Process On A Pressure Volume Diagram Identify The Initial State Final State And 1 (31.24 KiB) Viewed 24 times

meaning of your result. e) Locate the process on a pressure-volume diagram. Identify the initial state, final state, and the process path with respect to the dome region. Shade the area corresponding to the compression work. Problem 3 (35 points): Steam flows through an adiabatic turbine at a 10 kg/s steady rate, entering the turbine at 4 MPa, 500°C, and 70 m/s. The steam leaves the turbine at 30 kPa, 40 m/s and with an enthalpy of 2438 kJ/kg. Calculate: a). The phase and specific volume of the steam at the turbine exit. b) The power generated by the turbine. c) The cross-sectional area at the turbine exit. d) The rate of entropy change of the steam during this process.
