3. (25 points) The beam AB is subjected to the loadings shown. This beam is supported by a double-sheared pin at A and a
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
3. (25 points) The beam AB is subjected to the loadings shown. This beam is supported by a double-sheared pin at A and a

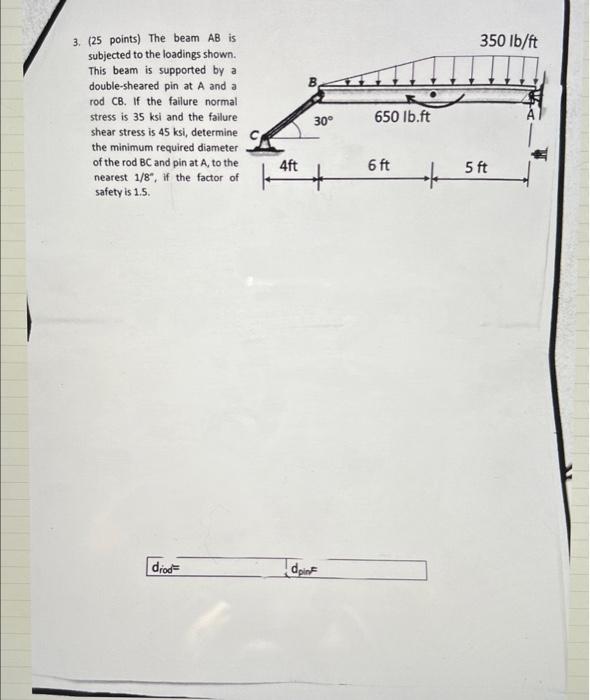

3. (25 points) The beam AB is subjected to the loadings shown. This beam is supported by a double-sheared pin at A and a rod CB. If the failure normal stress is 35 ksi and the failure shear stress is 45 ksi, determine the minimum required diameter of the rod BC and pin at A, to the nearest 1/8", if the factor of safety is 1.5. drod 4ft dpin 30° 650 lb.ft 6 ft + 350 lb/ft 5 ft
