2. Determine the state of stress at point H. Each section of the pipe has an inner and outer diameter of 36 mm and 44 mm

Post by answerhappygod »

2 Determine The State Of Stress At Point H Each Section Of The Pipe Has An Inner And Outer Diameter Of 36 Mm And 44 Mm 1
2 Determine The State Of Stress At Point H Each Section Of The Pipe Has An Inner And Outer Diameter Of 36 Mm And 44 Mm 1 (35.73 KiB) Viewed 15 times

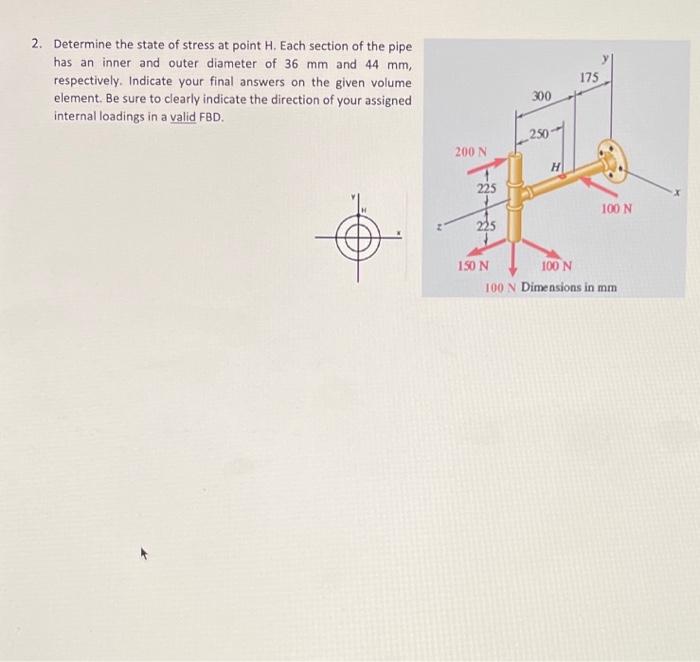

2. Determine the state of stress at point H. Each section of the pipe has an inner and outer diameter of 36 mm and 44 mm, respectively. Indicate your final answers on the given volume element. Be sure to clearly indicate the direction of your assigned internal loadings in a valid FBD. 200 N 225 150 N 300 30 H 175 100 N 100 N 100 N Dimensions in mm
