1. The beam BA is subjected to a triangular distributed load and is supported by a double-sheared pin at A and a roller

Post by answerhappygod »

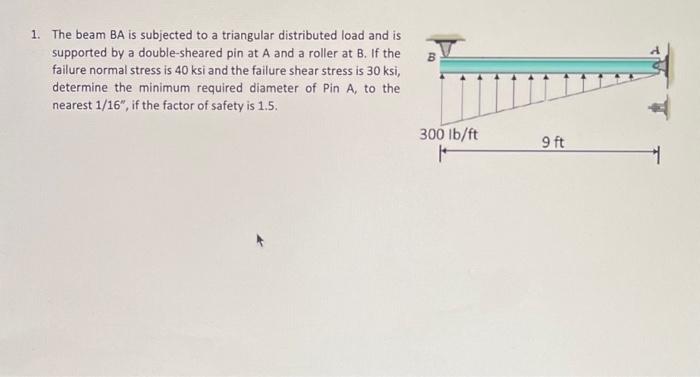

1 The Beam Ba Is Subjected To A Triangular Distributed Load And Is Supported By A Double Sheared Pin At A And A Roller 1
1 The Beam Ba Is Subjected To A Triangular Distributed Load And Is Supported By A Double Sheared Pin At A And A Roller 1 (19.39 KiB) Viewed 19 times
1. The beam BA is subjected to a triangular distributed load and is supported by a double-sheared pin at A and a roller at B. If the failure normal stress is 40 ksi and the failure shear stress is 30 ksi, determine the minimum required diameter of Pin A, to the nearest 1/16", if the factor of safety is 1.5. B 300 lb/ft | 9 ft
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
