Student Name.. Q1) The reheat-regenerative Rankine cycle as shown in the figure below has a net powe output of 330 MW, w

[answerhappygod]

Student Name Q1 The Reheat Regenerative Rankine Cycle As Shown In The Figure Below Has A Net Powe Output Of 330 Mw W 1 (71.65 KiB) Viewed 23 times

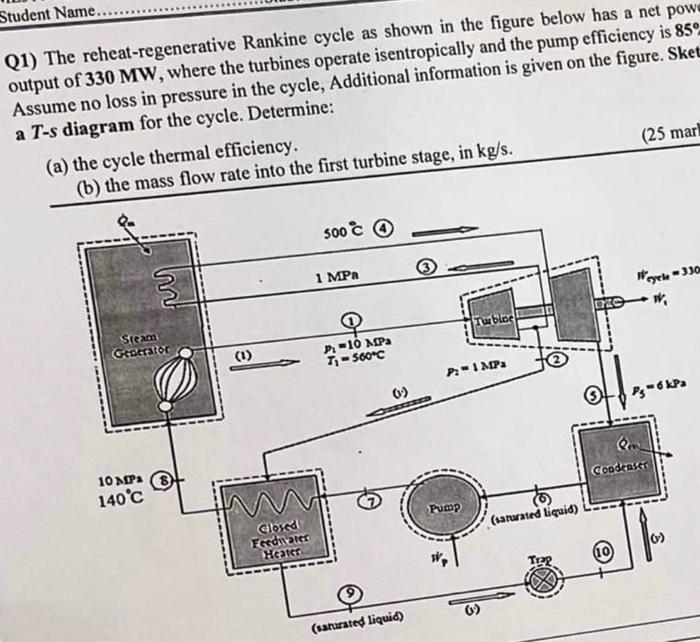

Student Name.. Q1) The reheat-regenerative Rankine cycle as shown in the figure below has a net powe output of 330 MW, where the turbines operate isentropically and the pump efficiency is 85% Assume no loss in pressure in the cycle, Additional information is given on the figure. Sket a T-s diagram for the cycle. Determine: (a) the cycle thermal efficiency. (b) the mass flow rate into the first turbine stage, in kg/s. Steam Generator 10 MPa 140°C (1) m Closed Feedwater Heater 500 CO 1 MPa P₁-10 MPa T₁-560°C (1) (saturated liquid) Turbine P:=1 MPa Pump (sarurated liquid) (25 marl 10 Weyele-330m →w, Pg=6kPa Co Condenser
