Idealize the box section shown here to direct stress carrying booms at four corners and shear stress carrying panels. A)

[answerhappygod]

Idealize The Box Section Shown Here To Direct Stress Carrying Booms At Four Corners And Shear Stress Carrying Panels A 1 (83.63 KiB) Viewed 18 times

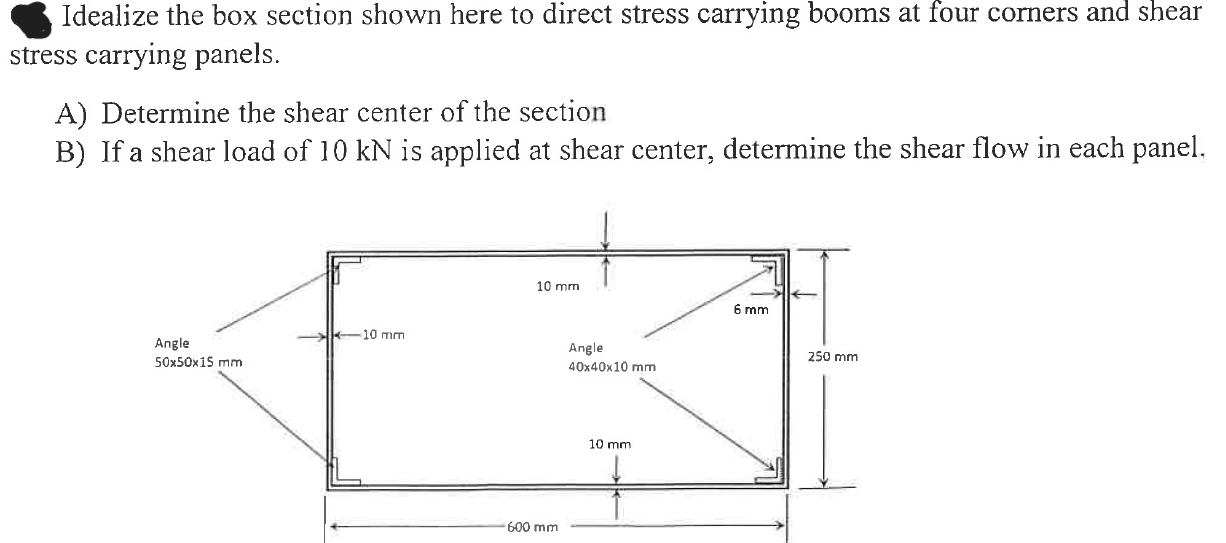

Idealize the box section shown here to direct stress carrying booms at four corners and shear stress carrying panels. A) Determine the shear center of the section B) If a shear load of 10 kN is applied at shear center, determine the shear flow in each panel. Angle 50x50x15 mm 10 mm 10 mm 600 mm Angle 40x40x10 mm 10 mm 6 mm 250 mm
