The Unity Feedback System Is Given In Figure Q2 1 And Its Root Locus Is Shown In Figure Q2 2 Answer The Following Ques 1 (41.84 KiB) Viewed 19 times
Please show me the working details for my references and this isControl Engineering subject ... please solve the (a) and (b)please.

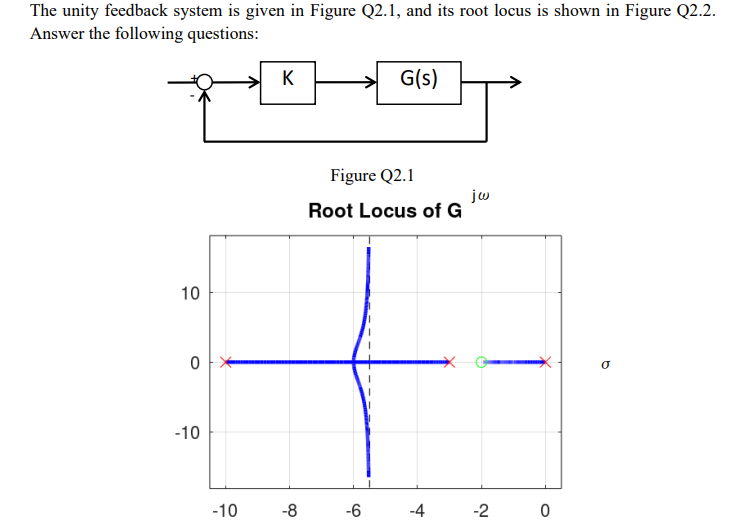

The unity feedback system is given in Figure Q2.1, and its root locus is shown in Figure Q2.2. Answer the following questions: 10 0 -10 -10 K -8 G(s) Figure Q2.1 Root Locus of G -6 -4 jw -2 0 O
a) Discover roots and zeros of the transfer function (1 mark) (CO3/PO2 / C4) b) Coordinate of point B is (-5.6, 10.0j). Analyze K for this point. You may use Matlab/Octave. You must attach code. (3 marks) (CO4/PO3 / C4)
