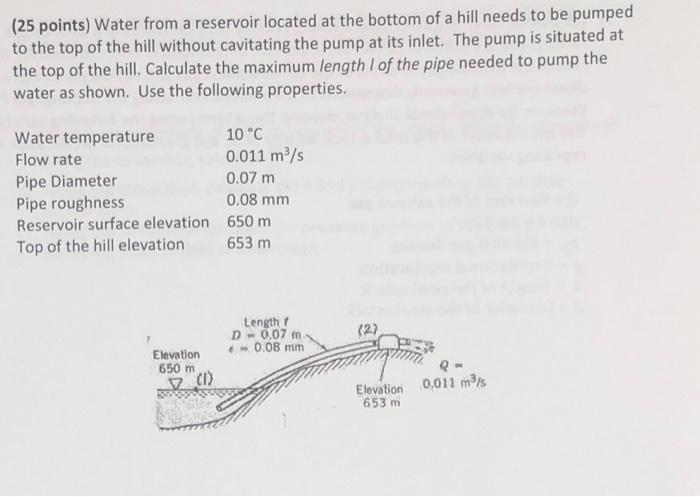

(25 points) Water from a reservoir located at the bottom of a hill needs to be pumped to the top of the hill without cavitating the pump at its inlet. The pump is situated at the top of the hill. Calculate the maximum length I of the pipe needed to pump the water as shown. Use the following properties. Water temperature Flow rate Pipe Diameter Pipe roughness Reservoir surface elevation Top of the hill elevation Elevation 650 m (1) 10 °C 0.011 m³/s 0.07 m 0.08 mm 650 m 653 m Length f D-0,07 m. -0.08 mm (2) Elevation 653 m 0.011 m³/s
