Problem-6 6° P 6° 2 KN Motion I μ = 0.30 all surfaces A force 'P' is applied in a downward direction to a wedge. The wed
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Problem-6 6° P 6° 2 KN Motion I μ = 0.30 all surfaces A force 'P' is applied in a downward direction to a wedge. The wed

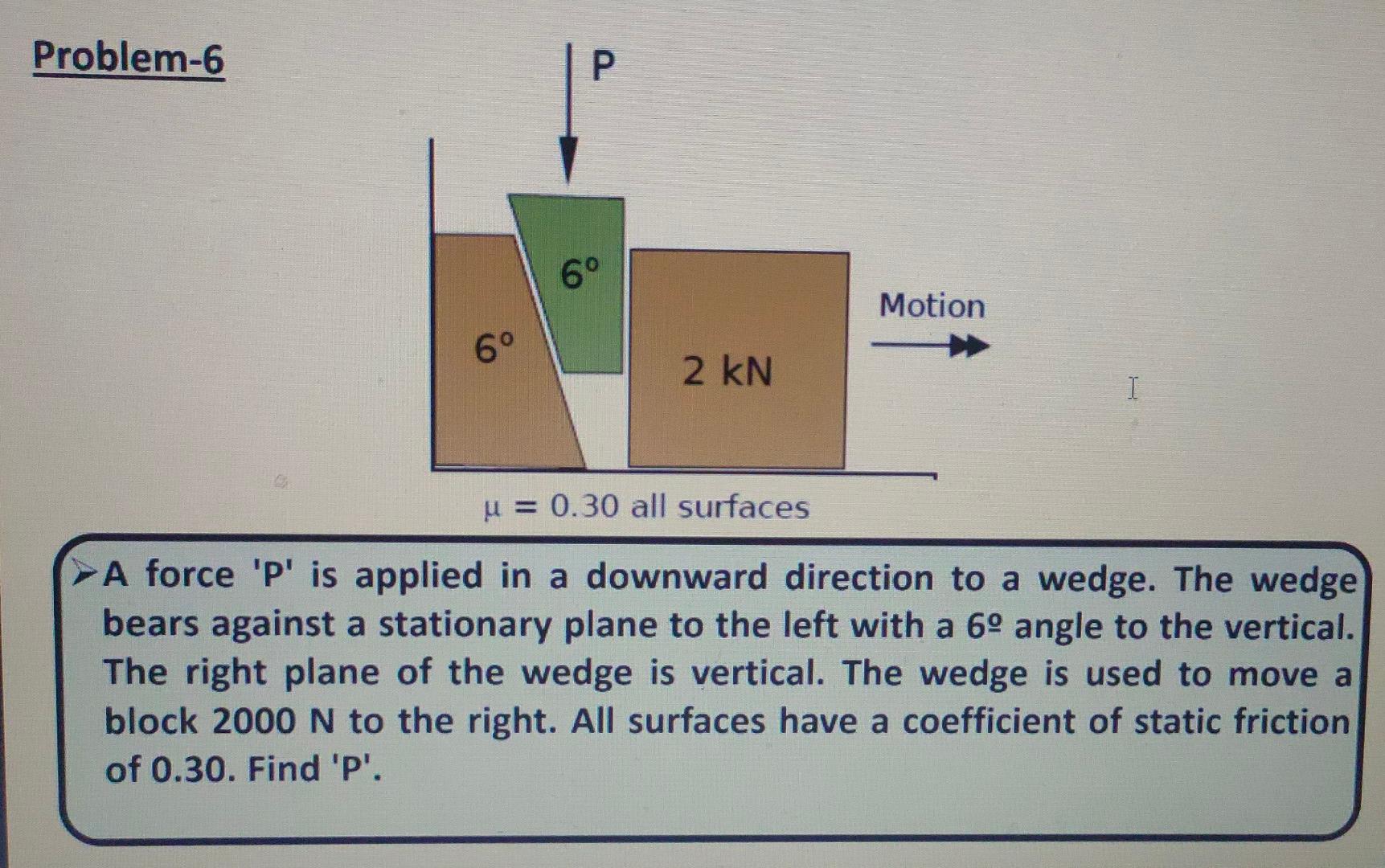

Problem-6 6° P 6° 2 KN Motion I μ = 0.30 all surfaces A force 'P' is applied in a downward direction to a wedge. The wedge bears against a stationary plane to the left with a 6º angle to the vertical. The right plane of the wedge is vertical. The wedge is used to move a block 2000 N to the right. All surfaces have a coefficient of static friction of 0.30. Find 'P'.
