Q4: The steel solid shaft has a diameter of 60 mm and is fixed at its ends A and B. If it is subjected to the torques sh

[answerhappygod]

Q4 The Steel Solid Shaft Has A Diameter Of 60 Mm And Is Fixed At Its Ends A And B If It Is Subjected To The Torques Sh 1 (54.73 KiB) Viewed 30 times

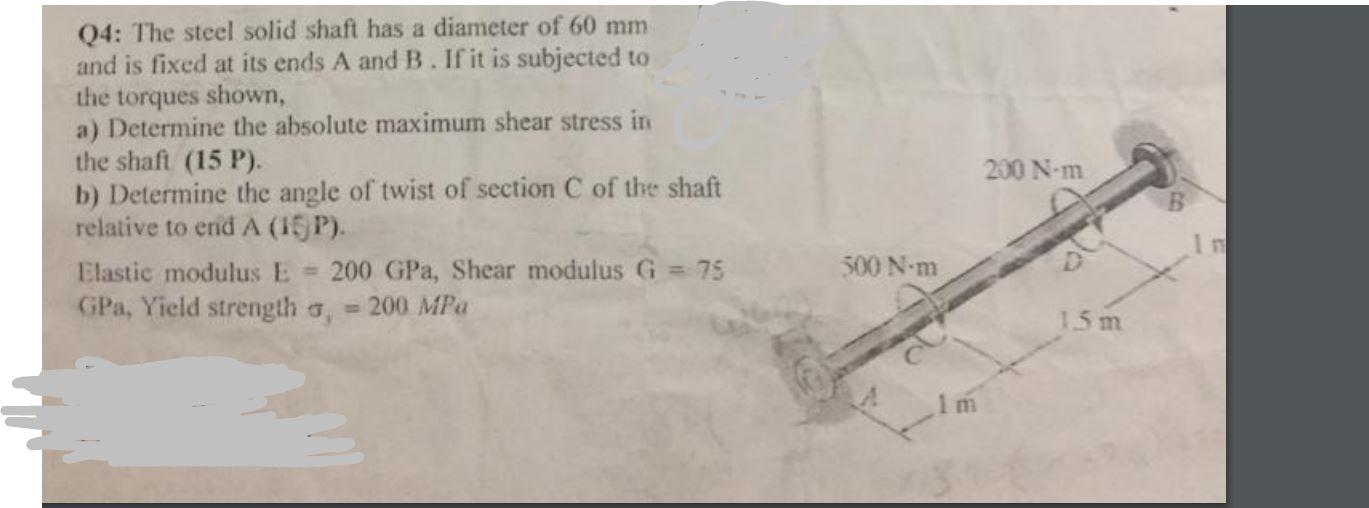

Q4: The steel solid shaft has a diameter of 60 mm and is fixed at its ends A and B. If it is subjected to the torques shown, a) Determine the absolute maximum shear stress in the shaft (15 P). b) Determine the angle of twist of section C of the shaft relative to end A (15)P). Elastic modulus E 200 GPa, Shear modulus G = 75 GPa, Yield strength a, = 200 MPa 500 N-m 1m 200 N-m 15m B Im
