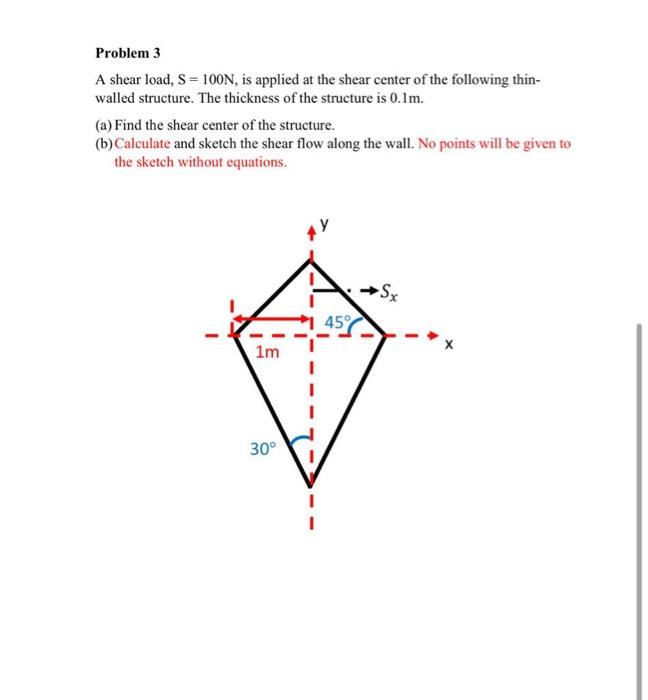

Problem 3 A shear load, S = 100N, is applied at the shear center of the following thin- walled structure. The thickness of the structure is 0.1m. (a) Find the shear center of the structure. (b) Calculate and sketch the shear flow along the wall. No points will be given to the sketch without equations. 7 1m 30° #V 45% Sx
