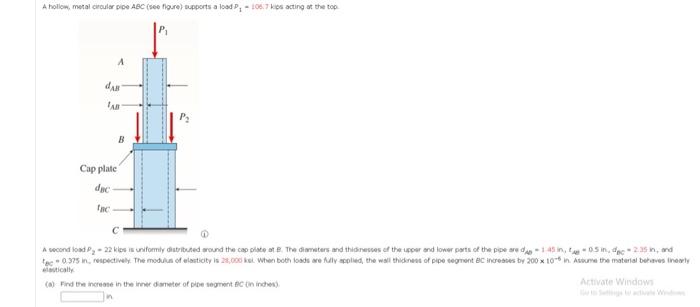

A hollow, metal circular pipe ABC (see figure) supports a load P, 106.7 kips acting at the top A dAB TAB B Cap plate dục tac P₂ C A second load P₂-22 kips is uniformly distributed around the cap plate at B. The diameters and thidinesses of the upper and lower parts of the pipe are d-145 in, fac 0.375 in, respectively. The modulus of elasticity is 28,000 kel. When both loads are fully applied, the wall thickness of pipe segment BC increases by 200 x 106 in elastically (a) Find the increase in the inner diameter of pipe segment BC (ninches) -0.5 in, dec-2.35 in, and Assume the material behaves nearly Activate Windows
Cap plate dac fac C A second load P₂ = 22 kips is uniformly distributed around the cap plate at 8. The diameters and thicknesses of the upper and lower parts of the pipe are da 1.45 in 10.5 in, doc=2.35 in, and tec-0.375 in, respectively. The modulus of elasticity is 20.000 ks. When both loads are fully applied, the wall thickness of pipe segment BC increases by 200 x 106 in Assume the material behaves linearly elastically (a) Find the increase in the inner diameter of pipe segment BC (inches) (b) Find Poisson's ratio for the metal (c) Find the increase in the wall thickness of pipe segment AB (in inches) in Find the increase in the inner diameter of segment AB (in inches)
