Q1: The 25 mm-diameter solid rod is subjected to the loads shown and clamped at section C. Considering point B; a) Show

Post by answerhappygod »

Q1 The 25 Mm Diameter Solid Rod Is Subjected To The Loads Shown And Clamped At Section C Considering Point B A Show 1
Q1 The 25 Mm Diameter Solid Rod Is Subjected To The Loads Shown And Clamped At Section C Considering Point B A Show 1 (59.32 KiB) Viewed 24 times

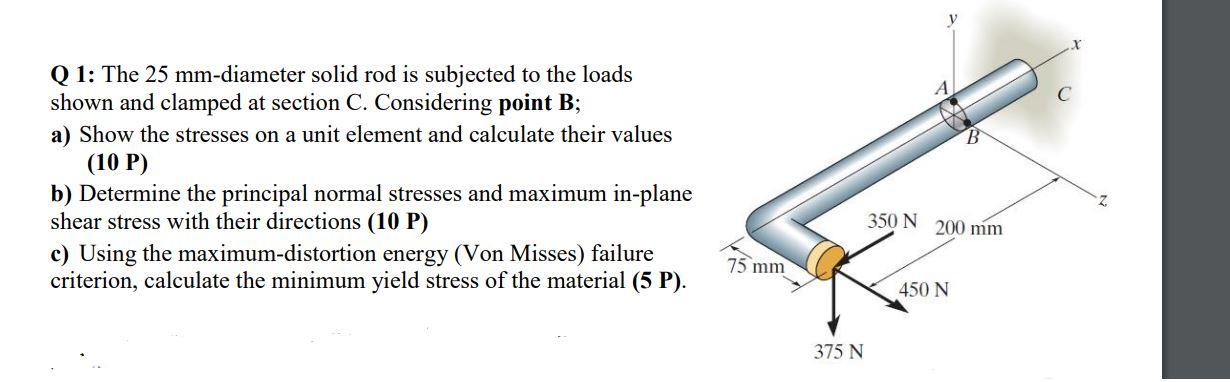

Q1: The 25 mm-diameter solid rod is subjected to the loads shown and clamped at section C. Considering point B; a) Show the stresses on a unit element and calculate their values (10 P) b) Determine the principal normal stresses and maximum in-plane shear stress with their directions (10 P) c) Using the maximum-distortion energy (Von Misses) failure criterion, calculate the minimum yield stress of the material (5 P). 75 mm 375 N 350 N 200 mm 450 N
