Q3. A thick-walled tube of stainless steel [k-19 W/m. °C] with 2 cm inner diameter (ID) and 4 cm outer diameter (OD) is

[answerhappygod]

Q3 A Thick Walled Tube Of Stainless Steel K 19 W M C With 2 Cm Inner Diameter Id And 4 Cm Outer Diameter Od Is 1 (158.47 KiB) Viewed 24 times

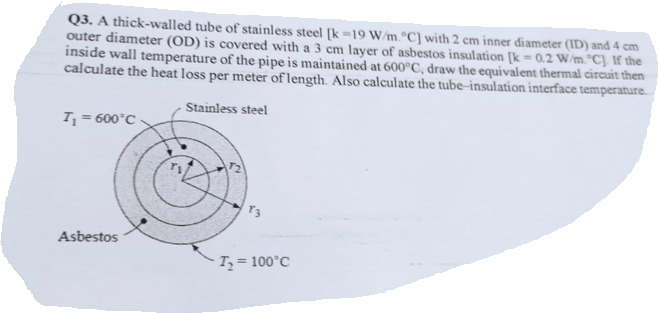

Q3. A thick-walled tube of stainless steel [k-19 W/m. °C] with 2 cm inner diameter (ID) and 4 cm outer diameter (OD) is covered with a 3 cm layer of asbestos insulation [k-0.2 W/m. °C] If the inside wall temperature of the pipe is maintained at 600°C, draw the equivalent thermal circuit then calculate the heat loss per meter of length. Also calculate the tube-insulation interface temperature. Stainless steel T₁ = 600°C Asbestos 73 T₂ = 100°C
