Solve max in 30-45 minutes and no reject the chapter ofFluid Mechanics
A network of pipelines is shown below. Friction factor = 0.2XX.. Determine the flow rate in each pipe.
Note : XX = 63
Solve Max In 30 45 Minutes And No Reject The Chapter Of Fluid Mechanics A Network Of Pipelines Is Shown Below Friction 1 (21.04 KiB) Viewed 28 times
Where
Solve Max In 30 45 Minutes And No Reject The Chapter Of Fluid Mechanics A Network Of Pipelines Is Shown Below Friction 2 (4.75 KiB) Viewed 28 times
2.5 m³/s L = 1200 m; D = 0.7 m A F L = 1500 m; D = 0.8 m B L = 1200 m; D = 0.7 m L = 1500 m; D = 0.7 m 1 m³/s L = 1500 m; D = 0.6 m L = 1500 m; D = 0.7 m C m L = 1200 m; D=0.7 D -0.5 m³/s 1 m³/s

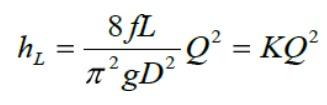

h₂ = T 8 fL ²gD² -Q² = KQ²
K = 8 fL 2 2 π²gD²
