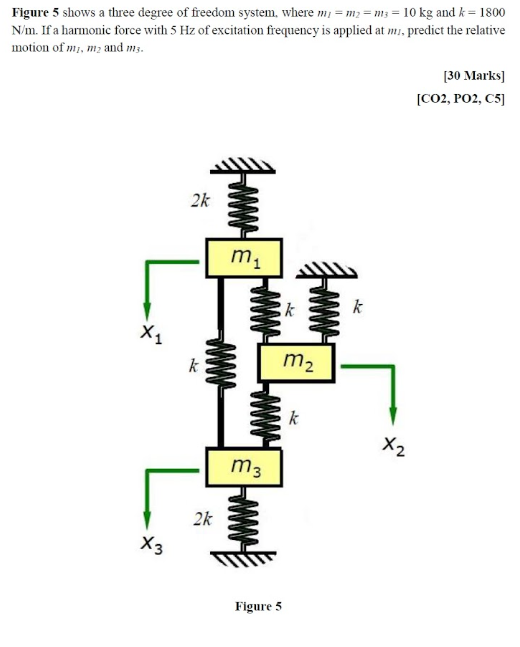

Figure 5 shows a three degree of freedom system, where m = m2 =m3 = 10 kg and k = 1800 N/m. If a harmonic force with 5 H

[answerhappygod]

Figure 5 Shows A Three Degree Of Freedom System Where M M2 M3 10 Kg And K 1800 N M If A Harmonic Force With 5 H 1 (152.05 KiB) Viewed 31 times

Figure 5 shows a three degree of freedom system, where m = m2 =m3 = 10 kg and k = 1800 N/m. If a harmonic force with 5 Hz of excitation frequency is applied at mi, predict the relative motion of my, my and m3. L X₁ 2k X3 k www 2k m₁ www www. m3 WWW tammy m₂ Figure 5 X₂ [30 Marks] [CO2, PO2, C5]
