Q3. An overhang beam is pinned supported at A point and B point as shown in Fig. 3a. The section for beam "ABC" is "I" s

[answerhappygod]

Q3 An Overhang Beam Is Pinned Supported At A Point And B Point As Shown In Fig 3a The Section For Beam Abc Is I S 1 (49.39 KiB) Viewed 39 times

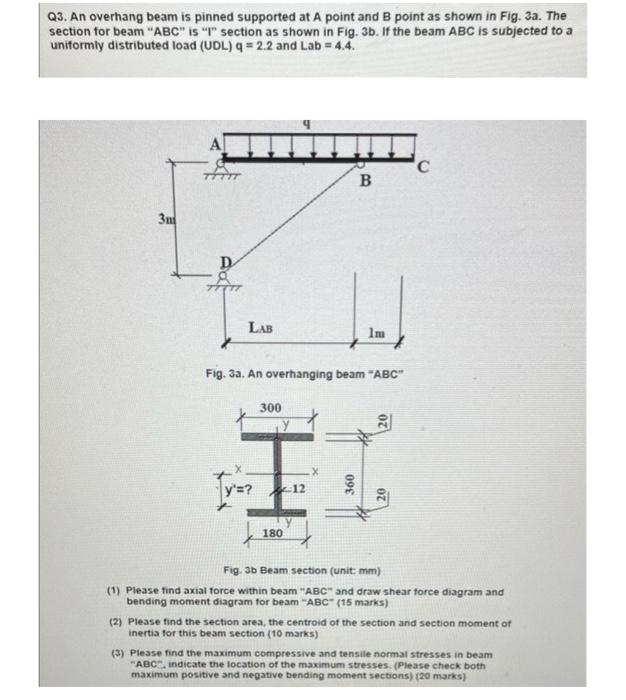

Q3. An overhang beam is pinned supported at A point and B point as shown in Fig. 3a. The section for beam "ABC" is "I" section as shown in Fig. 3b. If the beam ABC is subjected to a uniformly distributed load (UDL) q= 2.2 and Lab = 4.4. 3m Al 77777 LAB y'=? Fig. 3a. An overhanging beam "ABC" 300 Y 180 B 360 1m 20 'C Fig. 3b Beam section (unit: mm) (1) Please find axial force within beam "ABC" and draw shear force diagram and bending moment diagram for beam "ABC" (15 marks) (2) Please find the section area, the centroid of the section and section moment of inertia for this beam section (10 marks) (3) Please find the maximum compressive and tensile normal stresses in beam "ABC", indicate the location of the maximum stresses. (Please check both maximum positive and negative bending moment sections) (20 marks)
