c) Figure 2 shows a square wave against time in miliseconds (ms) and its spectrum in Hertz, (Hz). i. ii. iii. wave. Dete

[answerhappygod]

C Figure 2 Shows A Square Wave Against Time In Miliseconds Ms And Its Spectrum In Hertz Hz I Ii Iii Wave Dete 1 (59.71 KiB) Viewed 34 times

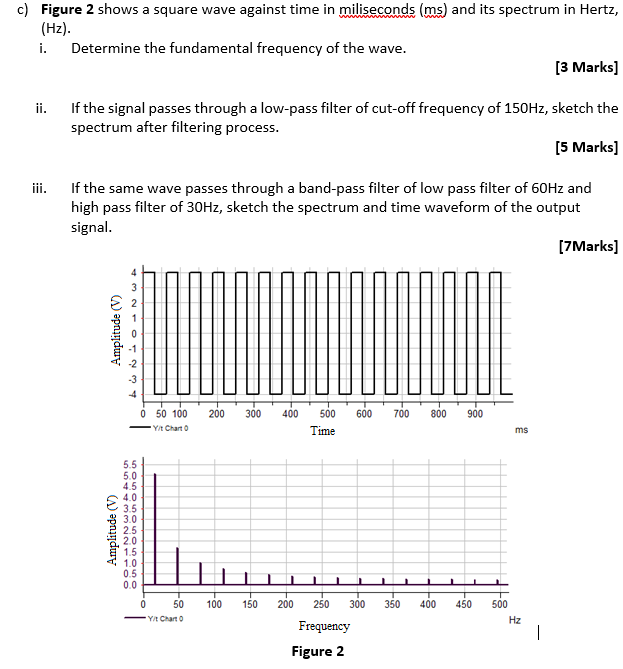

c) Figure 2 shows a square wave against time in miliseconds (ms) and its spectrum in Hertz, (Hz). i. ii. iii. wave. Determine the fundamental frequency of the wa [3 Marks] If the signal passes through a low-pass filter of cut-off frequency of 150Hz, sketch the spectrum after filtering process. [5 Marks] If the same wave passes through a band-pass filter of low pass filter of 60Hz and high pass filter of 30Hz, sketch the spectrum and time waveform of the output signal. Amplitude (V) Amplitude (V) 4 55443 MİNNIFOO 3 2 3 4 5.5 5.0 05550SOSOSO 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.0 0 50 100 *Y/t Chart 0 0 200 300 400 500 600 700 Time 50 100 *Y/t Chart 0 150 200 1 L 250 300 Frequency Figure 2 1 1 800 900 1 ms 350 400 450 500 Hz [7Marks]
