A B Determine The Distance And Y To The Centroid G Of The Beam S Cross Sectional Area Of The Concrete Dam From Fig 1 (76.22 KiB) Viewed 43 times
please help me do part B in detail plss

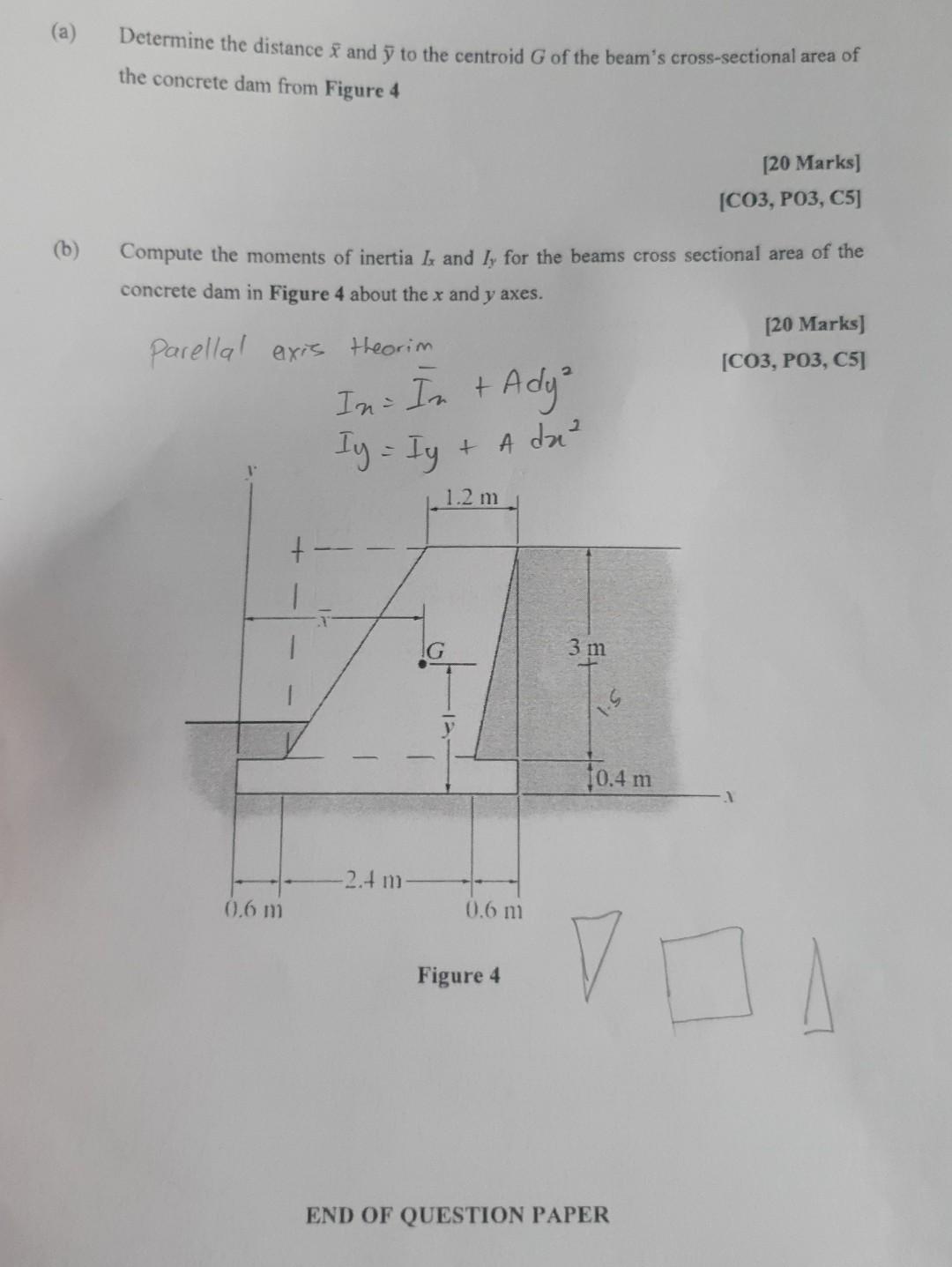

(a) (b) Determine the distance & and y to the centroid G of the beam's cross-sectional area of the concrete dam from Figure 4 Compute the moments of inertia I, and ly for the beams cross sectional area of the concrete dam in Figure 4 about the x and y axes. Parellal axis theorim 0.6 m In = In + Ady² Iy = Iy + A d₂² 1.2 m -2.4 m- G 0.6 m Figure 4 3m 5.1 10.4 m END OF QUESTION PAPER [20 Marks] [CO3, P03, C5] [20 Marks] [CO3, PO3, C5] 0
