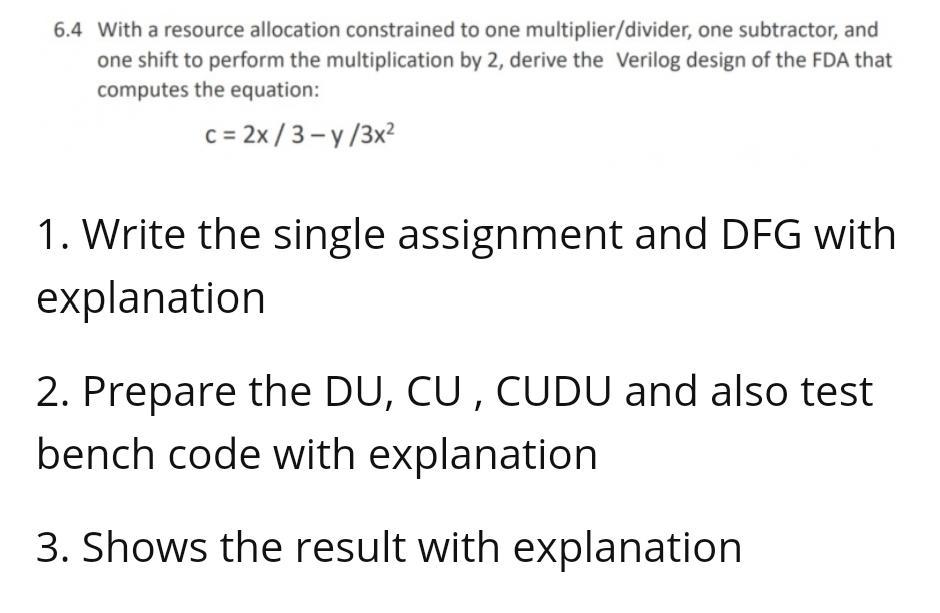

6.4 with a resource allocation constrained to one multiplier/divider, one subtractor, and one shift to perform the multiplication by 2, derive the Verilog design of the FDA that computes the equation: c=2x/3-y/3x² 1. Write the single assignment and DFG with explanation 2. Prepare the DU, CU, CUDU and also test bench code with explanation 3. Shows the result with explanation
