9. Referring to Figure 4, the infinite bus receive 1.0 per unit real power at 0.95 power factor lagging. All the line re

[answerhappygod]

9 Referring To Figure 4 The Infinite Bus Receive 1 0 Per Unit Real Power At 0 95 Power Factor Lagging All The Line Re 1 (19.39 KiB) Viewed 22 times

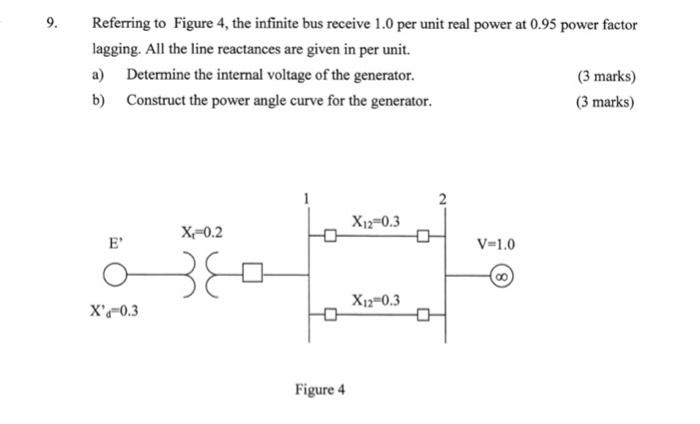

9. Referring to Figure 4, the infinite bus receive 1.0 per unit real power at 0.95 power factor lagging. All the line reactances are given in per unit. a) Determine the internal voltage of the generator. Construct the power angle curve for the generator. b) E' X'a=0.3 X₁-0.2 Figure 4 X12=0.3 X12 0.3 V=1.0 (3 marks) (3 marks)
