- Design A Filter To Meet The Following Specifications Adb Approximately As Shown Don T Care About Q The Circuit S 1 (28.55 KiB) Viewed 41 times
DO NOT COPY FROM OTHER answers ANSWERS. I WILL GIVE BAD RATING ANDREPORT.

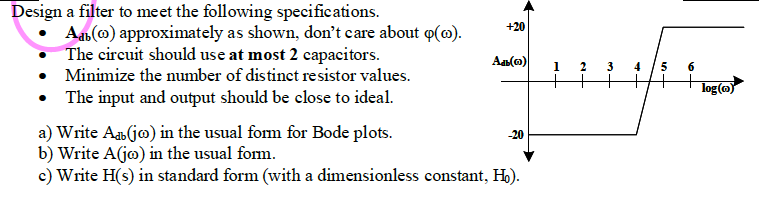

Design a filter to meet the following specifications. Adb() approximately as shown, don't care about q(©). The circuit should use at most 2 capacitors. Minimize the number of distinct resistor values. • The input and output should be close to ideal. +20 Adb(10) a) Write A (jo) in the usual form for Bode plots. b) Write A(jo) in the usual form. c) Write H(s) in standard form (with a dimensionless constant, H₂). -20 1 2 3 4 5 6 log()
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
