Problem 3: (15 points) An op-amp has slew rate of 2V/µs and gain of 40dB. If the input signal of the amplifier has frequ

Post by answerhappygod »

Problem 3 15 Points An Op Amp Has Slew Rate Of 2v Us And Gain Of 40db If The Input Signal Of The Amplifier Has Frequ 1
Problem 3 15 Points An Op Amp Has Slew Rate Of 2v Us And Gain Of 40db If The Input Signal Of The Amplifier Has Frequ 1 (161.07 KiB) Viewed 27 times

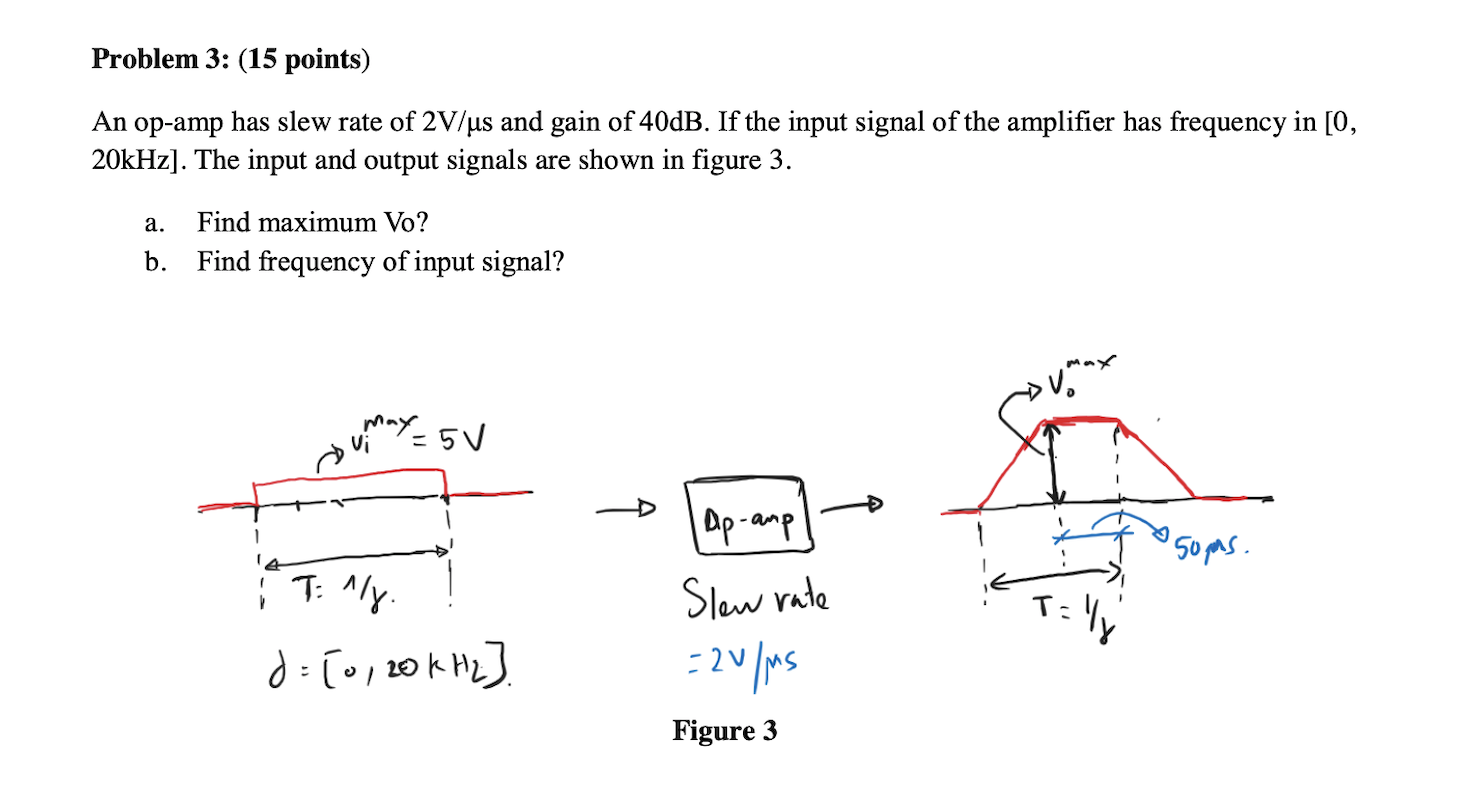

Problem 3: (15 points) An op-amp has slew rate of 2V/µs and gain of 40dB. If the input signal of the amplifier has frequency in [0, 20kHz]. The input and output signals are shown in figure 3. a. Find maximum Vo? b. Find frequency of input signal? may = 5V í T= 1/j. d= [0, 20kH₂] Ар-атр Slew rate =20/MS Figure 3 950ps.
