For the circuit shown in figure No 3 determine the value of RL. Which will make the Zener diode reach the maximum operat

Post by answerhappygod »

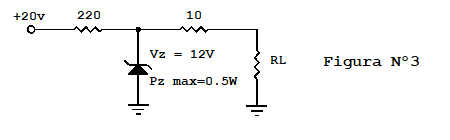

For the circuit shown in figure No 3 determine the value of RL.Which will make the Zener diode reach the maximum operatingpower.
For The Circuit Shown In Figure No 3 Determine The Value Of Rl Which Will Make The Zener Diode Reach The Maximum Operat 1
For The Circuit Shown In Figure No 3 Determine The Value Of Rl Which Will Make The Zener Diode Reach The Maximum Operat 1 (3.79 KiB) Viewed 29 times
+20v 0 220 10 Vz = 12V Pz max=0.5W RL Figura N°3
