5. The frequency response of a certain amplifier is dominated by a one-pole low-pass model. Some analysis on the amplifi

Post by answerhappygod »

5 The Frequency Response Of A Certain Amplifier Is Dominated By A One Pole Low Pass Model Some Analysis On The Amplifi 1
5 The Frequency Response Of A Certain Amplifier Is Dominated By A One Pole Low Pass Model Some Analysis On The Amplifi 1 (37.16 KiB) Viewed 32 times

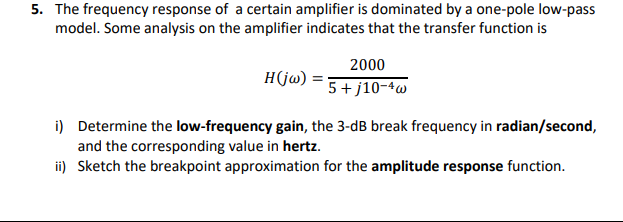

5. The frequency response of a certain amplifier is dominated by a one-pole low-pass model. Some analysis on the amplifier indicates that the transfer function is 2000 5+j10-4@ H(jw) = i) Determine the low-frequency gain, the 3-dB break frequency in radian/second, and the corresponding value in hertz. ii) Sketch the breakpoint approximation for the amplitude response function.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
