nV₂ (5 marks) The results shown in Fig. 3(b) are from an op amp comparator circuit that converts an input sine-wave to a

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

nV₂ (5 marks) The results shown in Fig. 3(b) are from an op amp comparator circuit that converts an input sine-wave to a

Post by answerhappygod »

Nv 5 Marks The Results Shown In Fig 3 B Are From An Op Amp Comparator Circuit That Converts An Input Sine Wave To A 1
Nv 5 Marks The Results Shown In Fig 3 B Are From An Op Amp Comparator Circuit That Converts An Input Sine Wave To A 1 (8.01 KiB) Viewed 18 times
Nv 5 Marks The Results Shown In Fig 3 B Are From An Op Amp Comparator Circuit That Converts An Input Sine Wave To A 2
Nv 5 Marks The Results Shown In Fig 3 B Are From An Op Amp Comparator Circuit That Converts An Input Sine Wave To A 2 (39.43 KiB) Viewed 18 times
nV₂ (5 marks) The results shown in Fig. 3(b) are from an op amp comparator circuit that converts an input sine-wave to an output square-wave with TL-2TH. Design this comparator circuit. (4 marks) in Fig 3(e)

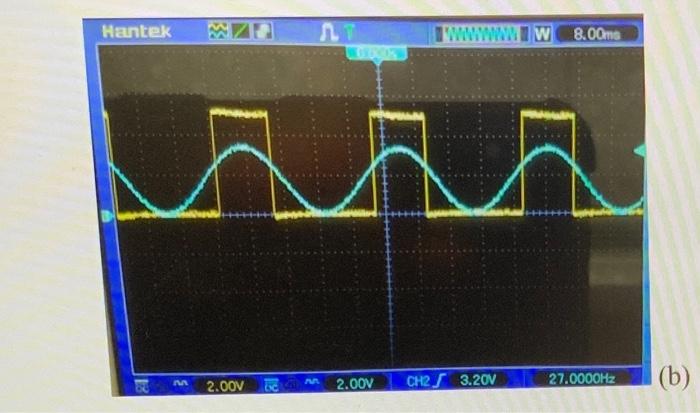

Hantek M 2.00V B n 2.00V wwwwwwww CH2 3.20V 8.00ms 27.0000Hz (b)
