Control System Fundamental Please Answer 1 (102.21 KiB) Viewed 27 times
please answer
Control System Fundamental Please Answer 2 (111.34 KiB) Viewed 27 times

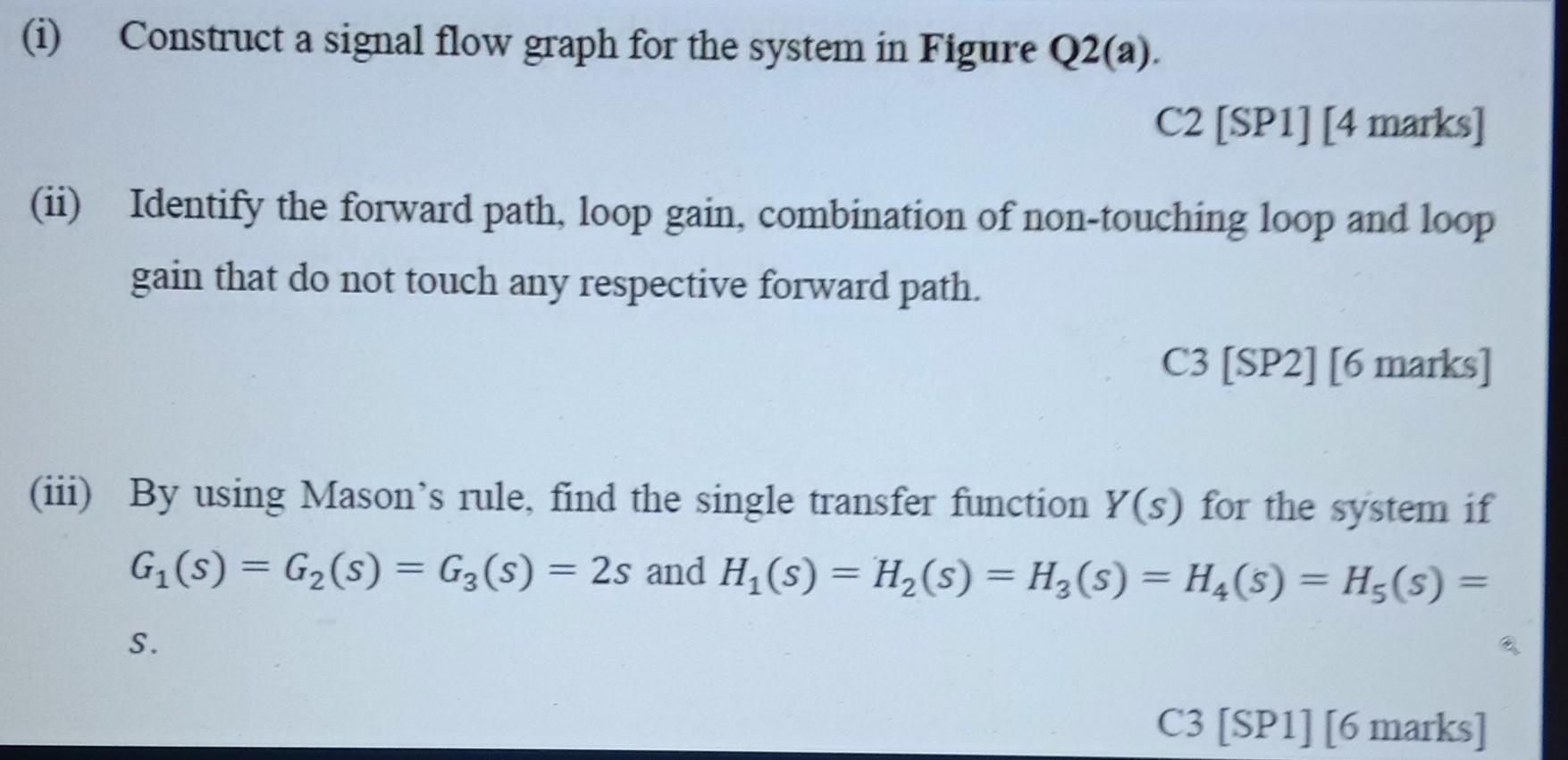

(i) Construct a signal flow graph for the system in Figure Q2(a). C2 [SP1] [4 marks] (ii) Identify the forward path, loop gain, combination of non-touching loop and loop gain that do not touch any respective forward path. C3 [SP2] [6 marks] (iii) By using Mason's rule, find the single transfer function Y(s) for the system if G₁(s) = G₂ (s) = G3 (s) = 2s and H₁ (s) = H₂(s) = H₂ (s) = H4(s) = H₂(s) = S. C3 [SP1] [6 marks]

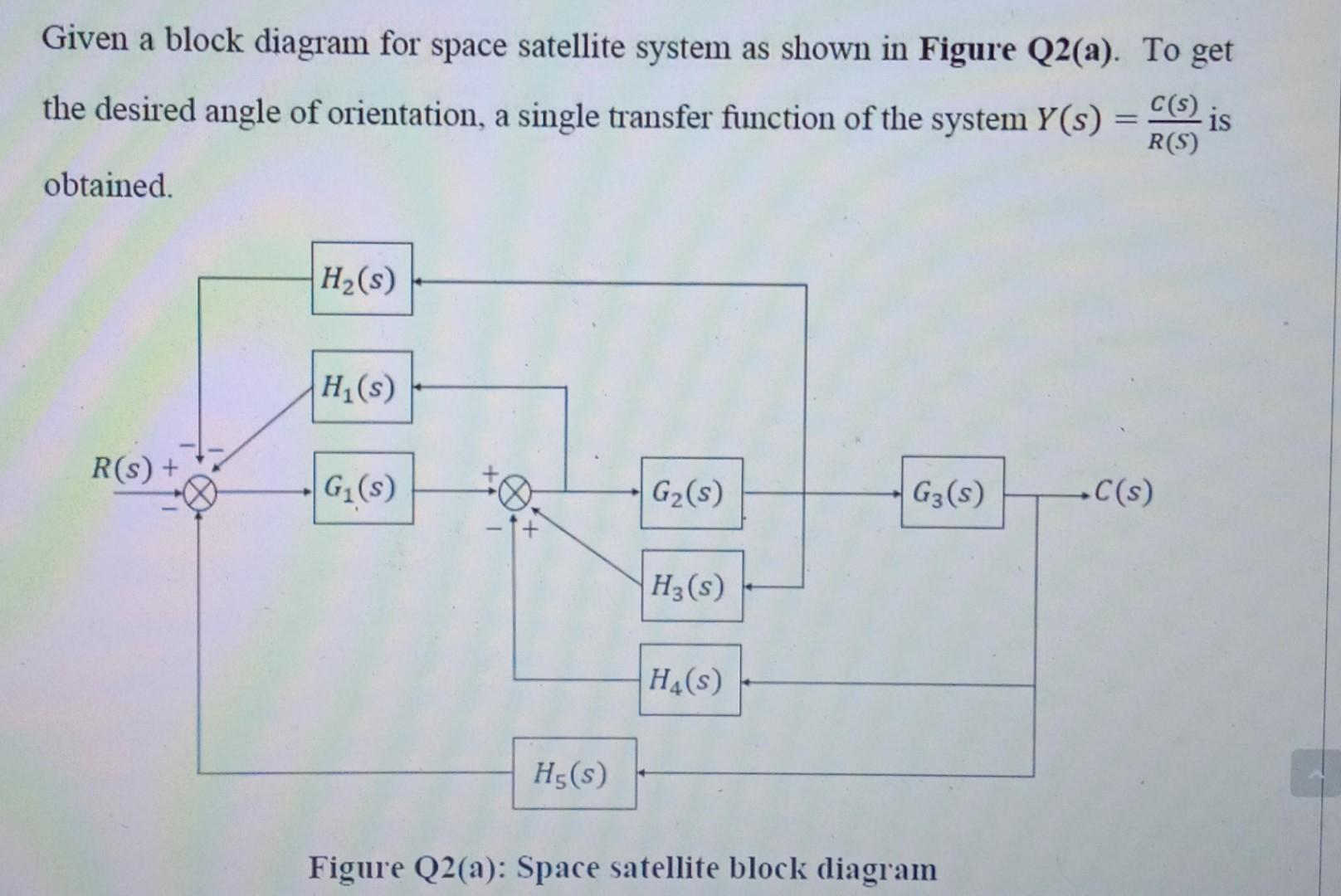

Given a block diagram for space satellite system as shown in Figure Q2(a). To get the desired angle of orientation, a single transfer function of the system Y(s) obtained. R(s) + H₂(s) H₁(s) G₁(s) HÃ(s) G₂ (s) H3(s) H₁(s) G3(s) Figure Q2(a): Space satellite block diagram = R(S) +C(s)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
