1323) For the JFET Configuration in Figure Q4(c). given VDs = - 4V and VDD = 10.7 V. Determine the drop across the drain
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
1323) For the JFET Configuration in Figure Q4(c). given VDs = - 4V and VDD = 10.7 V. Determine the drop across the drain

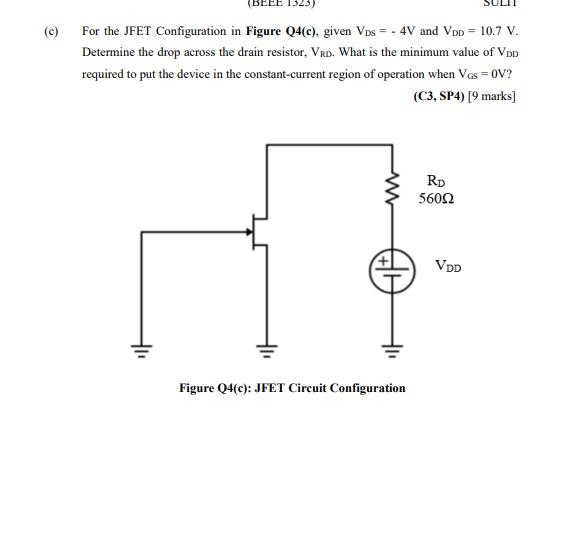

1323) For the JFET Configuration in Figure Q4(c). given VDs = - 4V and VDD = 10.7 V. Determine the drop across the drain resistor, VRD. What is the minimum value of VDD required to put the device in the constant-current region of operation when Vos = 0V? (C3, SP4) [9 marks] 41₁ Figure Q4(c): JFET Circuit Configuration RD 56002 VDD
