(d) Figure Q2(d)(ii) shows a clipper circuit using silicon diodes. Figure Q2(d)(i) is the input voltage, V₁ of Figure Q2

[answerhappygod]

D Figure Q2 D Ii Shows A Clipper Circuit Using Silicon Diodes Figure Q2 D I Is The Input Voltage V Of Figure Q2 1 (30.41 KiB) Viewed 27 times

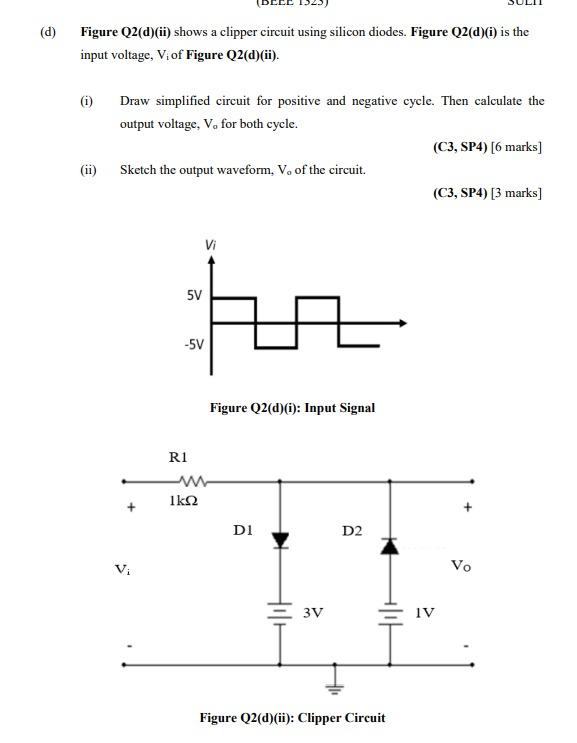

(d) Figure Q2(d)(ii) shows a clipper circuit using silicon diodes. Figure Q2(d)(i) is the input voltage, V₁ of Figure Q2(d)(ii). (i) Draw simplified circuit for positive and negative cycle. Then calculate the output voltage, V, for both cycle. (ii) Sketch the output waveform, V. of the circuit. + 5V -5V R1 Vi ww ΙΚΩ Z Figure Q2(d)(i): Input Signal DI 3V D2 Figure Q2(d)(ii): Clipper Circuit (C3, SP4) [6 marks] (C3, SP4) [3 marks] IV Vo
