4:1 moooo reliee D1 D2 Figure Q2(c): Rectifier Circuit RL 1.0kQ

Post by answerhappygod »

4 1 Moooo Reliee D1 D2 Figure Q2 C Rectifier Circuit Rl 1 0kq 1
4 1 Moooo Reliee D1 D2 Figure Q2 C Rectifier Circuit Rl 1 0kq 1 (90.39 KiB) Viewed 21 times

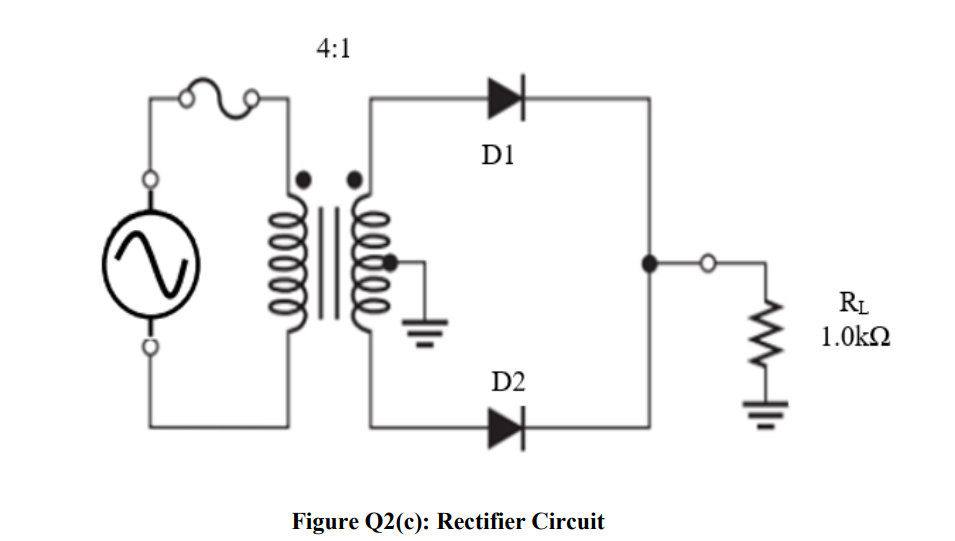

Figure Q2(c) shows a rectifier circuit with Germanium diode.Given the input voltage is 120Vrms.
State the type of rectifier circuit. Calculate thetotal peak secondary voltage. Sketch the voltage waveformacross RL. (C3, SP4) (iv) Calculate the value of peak inversevoltage (PIV).
4:1 moooo reliee D1 D2 Figure Q2(c): Rectifier Circuit RL 1.0kQ
