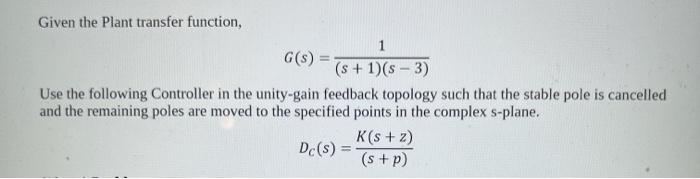

Given the Plant transfer function, G(s) = 1 (s + 1)(s-3) Use the following Controller in the unity-gain feedback topology such that the stable pole is cancelled and the remaining poles are moved to the specified points in the complex s-plane. Dc(s) = K(s+z) (s + p)

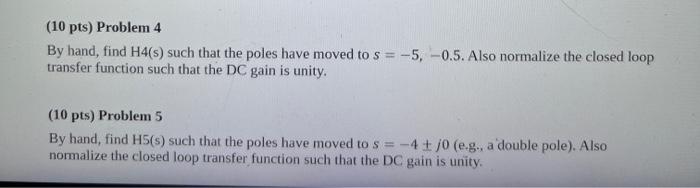

(10 pts) Problem 4 By hand, find H4(s) such that the poles have moved to s= -5, -0.5. Also normalize the closed loop transfer function such that the DC gain is unity. (10 pts) Problem 5 By hand, find H5(s) such that the poles have moved to s=-4 tj0 (e.g., a double pole). Also normalize the closed loop transfer function such that the DC gain is unity.
