Would like an explanation of how to solve asap, thanks!
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Would like an explanation of how to solve asap, thanks!
Would like an explanation of how to solve asap, thanks!

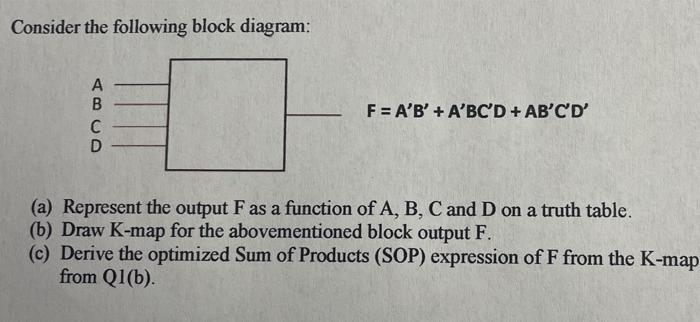

Consider the following block diagram: ABCD F = A'B' + A'BC'D + AB'C'D' (a) Represent the output F as a function of A, B, C and D on a truth table. (b) Draw K-map for the abovementioned block output F. (c) Derive the optimized Sum of Products (SOP) expression of F from the K-map from Q1(b).
Consider the following block diagram: ABCD F = A'B' + A'BC'D + AB'C'D' (a) Represent the output F as a function of A, B, C and D on a truth table. (b) Draw K-map for the abovementioned block output F. (c) Derive the optimized Sum of Products (SOP) expression of F from the K-map from Q1(b).
