a. The following single-phase (230V) loads are connected to a 400V, three - phase distribution board - Load KW 4 5 3.3 5

Post by answerhappygod »

A The Following Single Phase 230v Loads Are Connected To A 400v Three Phase Distribution Board Load Kw 4 5 3 3 5 1
A The Following Single Phase 230v Loads Are Connected To A 400v Three Phase Distribution Board Load Kw 4 5 3 3 5 1 (58.74 KiB) Viewed 32 times

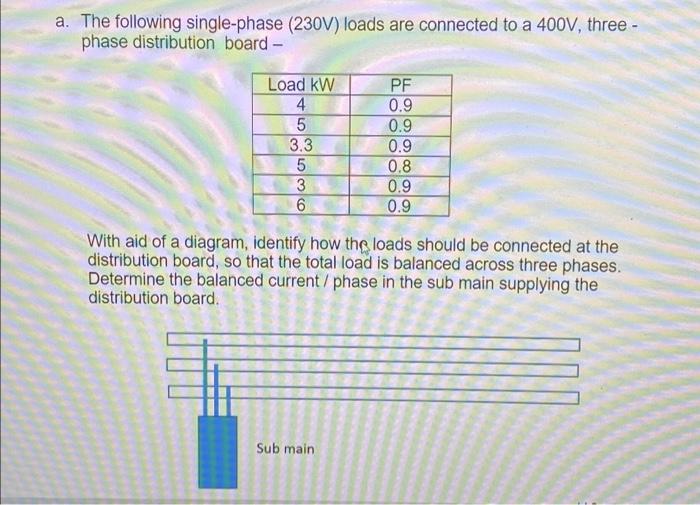

a. The following single-phase (230V) loads are connected to a 400V, three - phase distribution board - Load KW 4 5 3.3 5 3 6 PF 0.9 0.9 0.9 0.8 0.9 0.9 With aid of a diagram, identify how the loads should be connected at the distribution board, so that the total load is balanced across three phases. Determine the balanced current / phase in the sub main supplying the distribution board. Sub main
