Q6. There are two parts to this question: Q6A. A T-line with characteristic impedance Z₁ = 50 Ohm is terminated with fou

Post by answerhappygod »

Q6 There Are Two Parts To This Question Q6a A T Line With Characteristic Impedance Z 50 Ohm Is Terminated With Fou 1
Q6 There Are Two Parts To This Question Q6a A T Line With Characteristic Impedance Z 50 Ohm Is Terminated With Fou 1 (45.27 KiB) Viewed 24 times
please help me with this problem

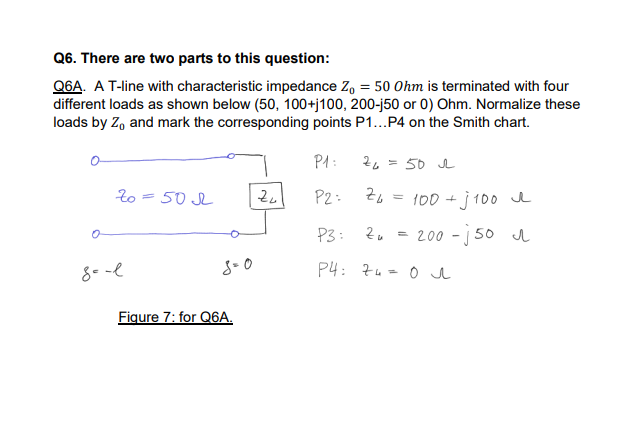

Q6. There are two parts to this question: Q6A. A T-line with characteristic impedance Z₁ = 50 Ohm is terminated with four different loads as shown below (50, 100+j100, 200-j50 or 0) Ohm. Normalize these loads by Z, and mark the corresponding points P1...P4 on the Smith chart. Zo=50& g=l 5-0 Figure 7: for Q6A. Zu P1: P2= 26 Z6 = 50 JL = 100 + 100 J Zu = 200-50₁ P3: P4: Zu = ол
