QUESTION 1 Simplify the block diagram seen in Figure 1 and obtain the closed-loop transfer function C(s)/R(s). You must

Post by answerhappygod »

Question 1 Simplify The Block Diagram Seen In Figure 1 And Obtain The Closed Loop Transfer Function C S R S You Must 1
Question 1 Simplify The Block Diagram Seen In Figure 1 And Obtain The Closed Loop Transfer Function C S R S You Must 1 (35.78 KiB) Viewed 31 times

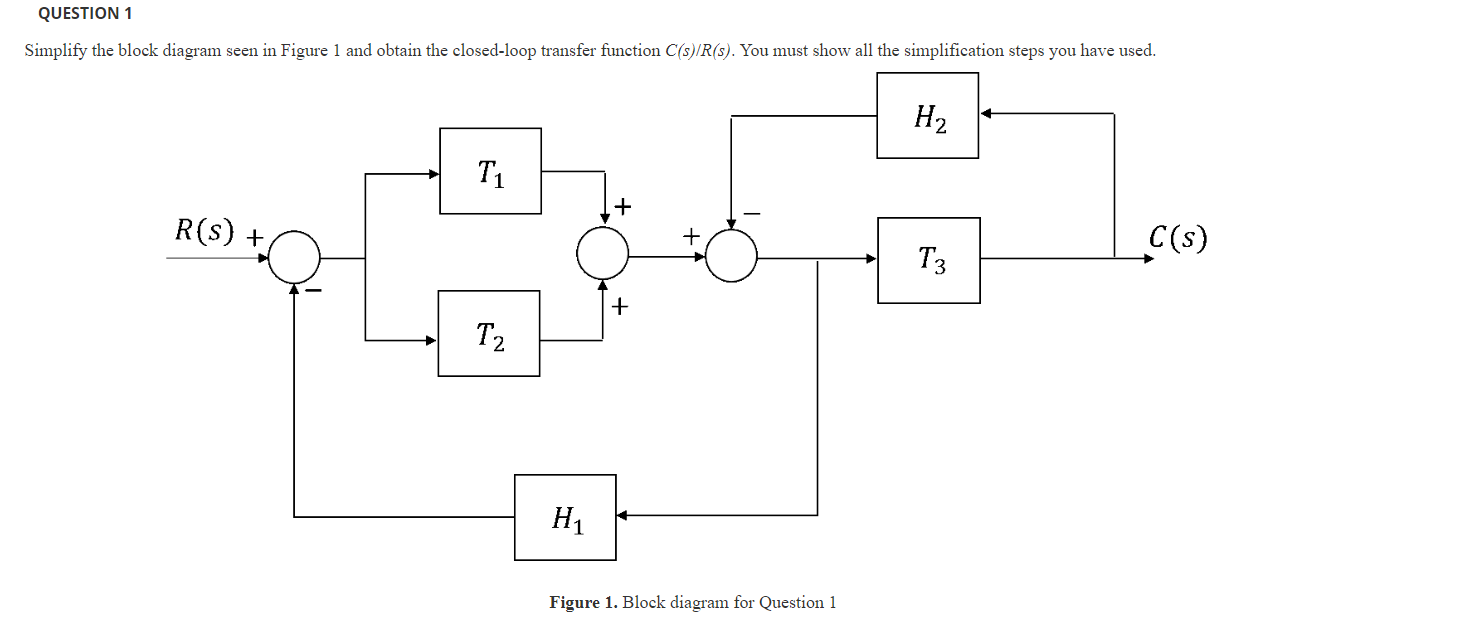

QUESTION 1 Simplify the block diagram seen in Figure 1 and obtain the closed-loop transfer function C(s)/R(s). You must show all the simplification steps you have used. R(s) + T₁ T₂ H₁ + + Figure 1. Block diagram for Question 1 H₂ T3 C(s)
