Simplify the block diagram seen in Figure 1 and obtain the closed-loop transfer function C(s)/R(s). You must show all th

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Simplify the block diagram seen in Figure 1 and obtain the closed-loop transfer function C(s)/R(s). You must show all th

Post by answerhappygod »

Simplify The Block Diagram Seen In Figure 1 And Obtain The Closed Loop Transfer Function C S R S You Must Show All Th 1
Simplify The Block Diagram Seen In Figure 1 And Obtain The Closed Loop Transfer Function C S R S You Must Show All Th 1 (22.8 KiB) Viewed 37 times

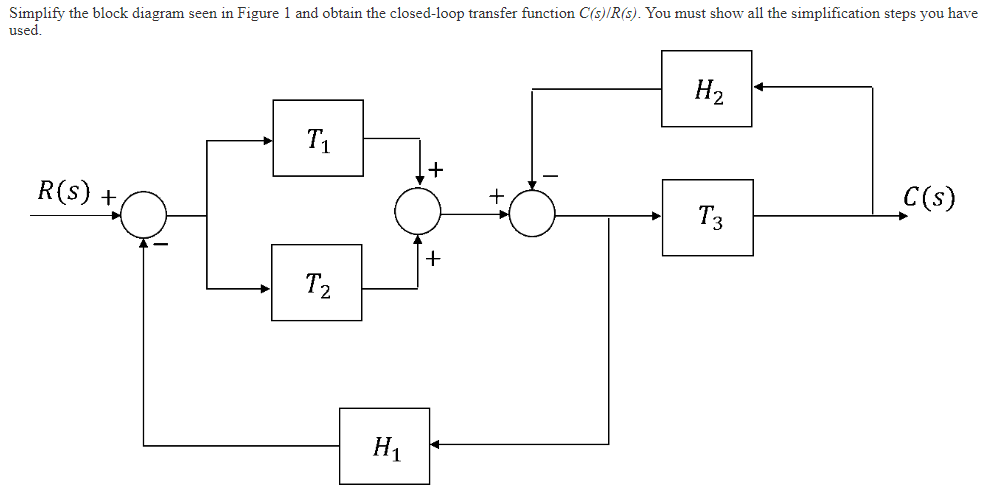

Simplify the block diagram seen in Figure 1 and obtain the closed-loop transfer function C(s)/R(s). You must show all the simplification steps you have used. R(s) + T₁ T₂ H₁ + + H₂ T3 C(s)
