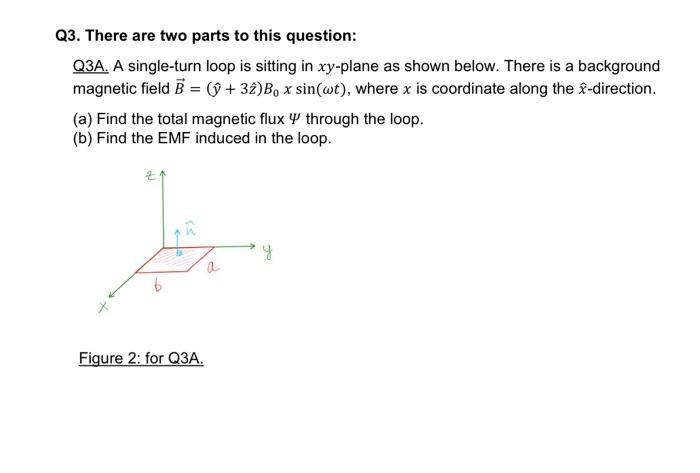

Q3. There are two parts to this question: Q3A. A single-turn loop is sitting in xy-plane as shown below. There is a background magnetic field B = (+32) Bo x sin(wt), where x is coordinate along the x-direction. (a) Find the total magnetic flux through the loop. (b) Find the EMF induced in the loop. Figure 2: for Q3A. y

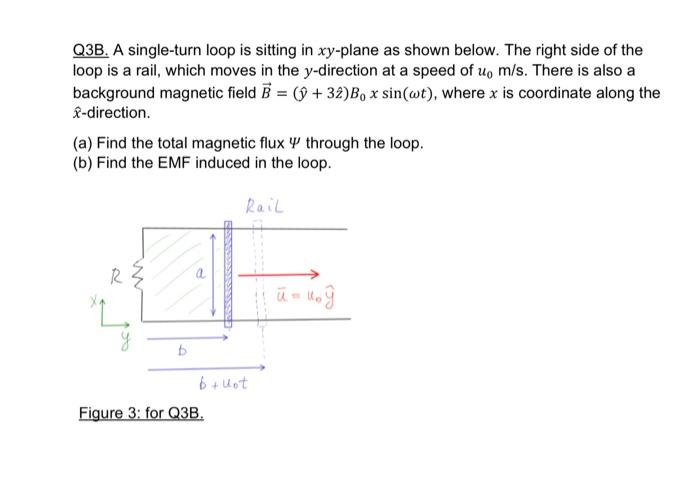

Q3B. A single-turn loop is sitting in xy-plane as shown below. The right side of the loop is a rail, which moves in the y-direction at a speed of uo m/s. There is also a background magnetic field B = (+32) Bo x sin(wt), where x is coordinate along the x-direction. (a) Find the total magnetic flux through the loop. (b) Find the EMF induced in the loop. Rail R www b b + lot Figure 3: for Q3B. ū = lloy
