(b) A 3-phase, 33/6-6 kV, star/delta connected transformer is protected by Merz-Price circulating current system. If the

Post by answerhappygod »

B A 3 Phase 33 6 6 Kv Star Delta Connected Transformer Is Protected By Merz Price Circulating Current System If The 1
B A 3 Phase 33 6 6 Kv Star Delta Connected Transformer Is Protected By Merz Price Circulating Current System If The 1 (42.51 KiB) Viewed 33 times

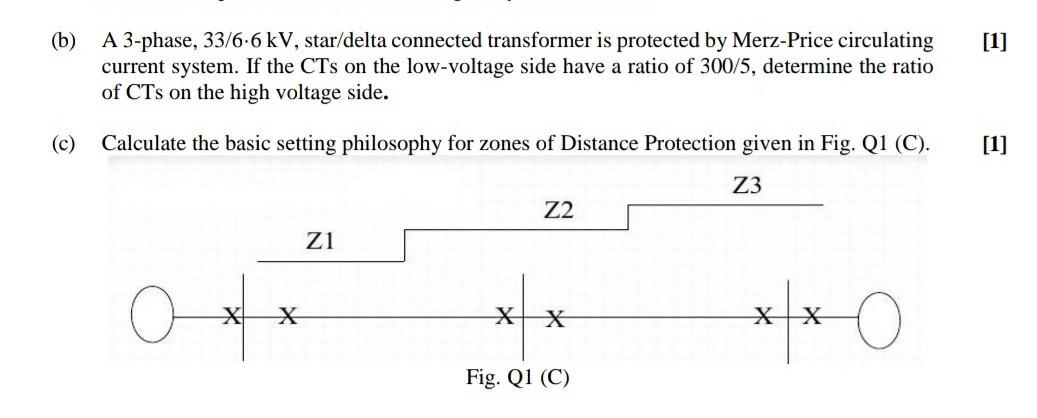

(b) A 3-phase, 33/6-6 kV, star/delta connected transformer is protected by Merz-Price circulating current system. If the CTs on the low-voltage side have a ratio of 300/5, determine the ratio of CTs on the high voltage side. (c) Calculate the basic setting philosophy for zones of Distance Protection given in Fig. Q1 (C). Z3 X X Z1 Z2 XX Fig. Q1 (C) **O [1] [1]
