3. AC circuits in sinusoidal steady state [20pts] a. For this AC circuit in the time domain, the voltage source is provi

[answerhappygod]

3 Ac Circuits In Sinusoidal Steady State 20pts A For This Ac Circuit In The Time Domain The Voltage Source Is Provi 1 (52.2 KiB) Viewed 35 times

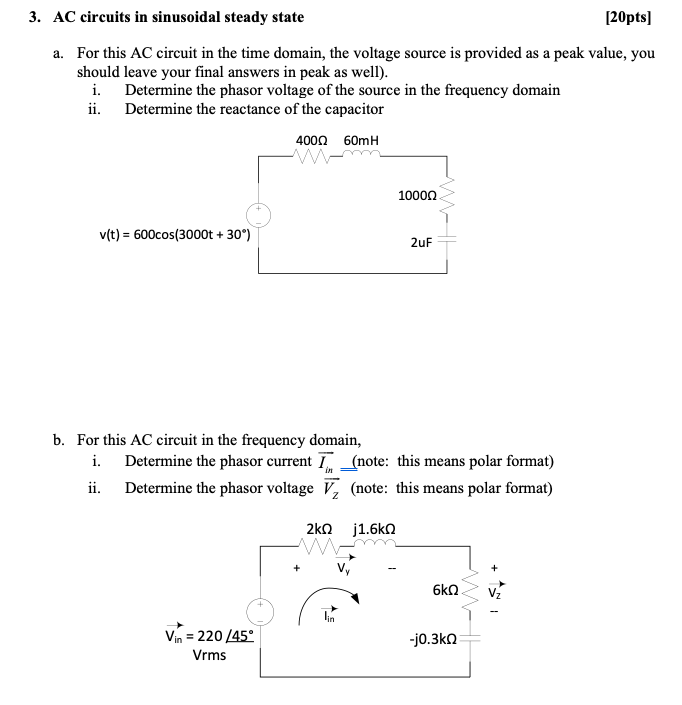

3. AC circuits in sinusoidal steady state [20pts] a. For this AC circuit in the time domain, the voltage source is provided as a peak value, you should leave your final answers in peak as well). i. ii. Determine the phasor voltage of the source in the frequency domain Determine the reactance of the capacitor 4000 60mH v(t) = 600cos(3000t +30°) b. For this AC circuit in the frequency domain, i. Determine the phasor current ii. Determine the phasor voltage V₂ Vin = 220/45° Vrms 10000 2ΚΩ j1.6kΩ w 2uF (note: this means polar format) (note: this means polar format) 6kQ -j0.3kΩ
